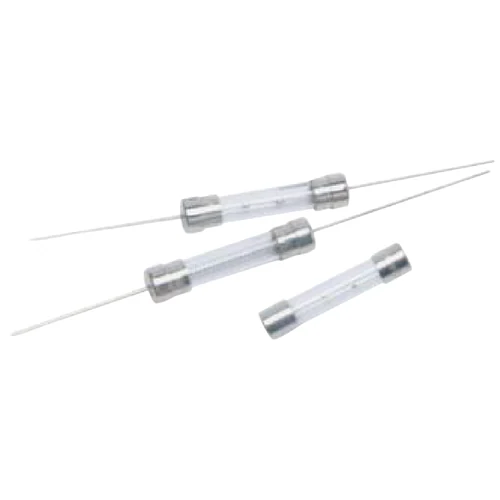

HOLLY FUSE 62S-050L 125V AC 5A Slow-Blow Tube Fuse

Name: HOLLY FUSE 62S-050L 125V AC 5A Slow-Blow Tube Fuse
Brand: Hollyland
SKU: 62S-050L

Part Number: 62S-050L

● Check availability

62S-050L is part of the HOLLY FUSE 61S range, specified at 5A, 125V AC.

Rated Current5A

Rated Voltage125V AC

Breaking Capacity10,000A at 125V AC

Package6.35×32mm

Tags

125V AC 6.35×32mm 61S Glass/Ceramic Tube Fuse Slow-Blow

Designed for circuit protection, HOLLY FUSE 62S-050L is specified at 5A, 125V AC within the 61S series. Interrupting capacity: 10,000A at 125V AC. Standards: UL 248-1, UL 248-14. Source: Hollyland Current Fuse catalogue p44.

Technical Specifications

Part Number: 62S-050L
Manufacturer Part Number: 62S-050L
Series: 61S
Fuse Type: Glass/Ceramic Tube Fuse
Current Rating: 5A
Voltage Rating: 125V AC
AC / DC: AC
Breaking Capacity: 10,000A at 125V AC
I²t: 57.8 A²s
Operating Temperature: -55°C to +125°C
Package / Dimensions: 6.35×32mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Ferrule
Fuse Speed: Time Delay
Reference Lead Time: 2–4 weeks
Rated current: 5A
Rated voltage: 125V AC
Fuse characteristic: Slow-Blow
Fuse construction: Glass/Ceramic Tube Fuse
Interrupting capacity: 10,000A at 125V AC
Standards: UL 248-1, UL 248-14
Manufacturer approval note: UL/cUL, CSA, PSE, TÜV and KC are listed; exact approvals vary by current and voltage option.
Source: Hollyland Current Fuse catalogue, printed page 44
