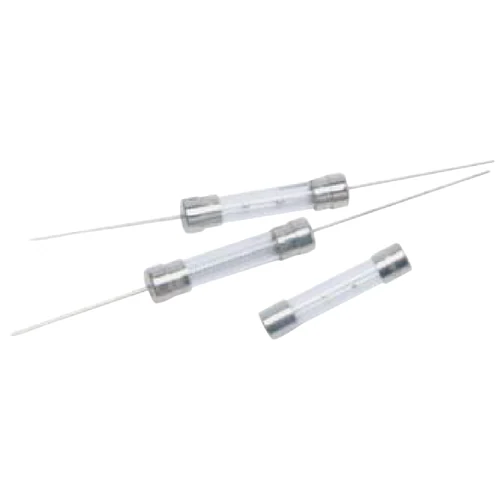

HOLLY FUSE 61S-0250L 125V AC 250mA Slow-Blow Tube Fuse

Name: HOLLY FUSE 61S-0250L 125V AC 250mA Slow-Blow Tube Fuse
Brand: Hollyland
SKU: 61S-0250L

Part Number: 61S-0250L

● Check availability

HOLLY FUSE 61S-0250L combines its rated protection value with 125V AC operation in the 61S product family.

Rated Current250mA

Rated Voltage125V AC

Breaking Capacity10,000A at 125V AC

Package6.35×32mm

Tags

125V AC 6.35×32mm 61S Glass/Ceramic Tube Fuse Slow-Blow

Part 61S-0250L is a HOLLY FUSE 61S-series slow-blow tube fuse with specifications of 250mA, 125V AC. Interrupting capacity: 10,000A at 125V AC. Standards: UL 248-1, UL 248-14. Technical data checked against catalogue p44.

Technical Specifications

Part Number: 61S-0250L
Manufacturer Part Number: 61S-0250L
Series: 61S
Fuse Type: Glass/Ceramic Tube Fuse
Current Rating: 250mA
Voltage Rating: 125V AC
AC / DC: AC
Breaking Capacity: 10,000A at 125V AC
I²t: 0.415 A²s
Operating Temperature: -55°C to +125°C
Package / Dimensions: 6.35×32mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Ferrule
Fuse Speed: Time Delay
Reference Lead Time: 2–4 weeks
Rated current: 250mA
Rated voltage: 125V AC
Fuse characteristic: Slow-Blow
Fuse construction: Glass/Ceramic Tube Fuse
Interrupting capacity: 10,000A at 125V AC
Standards: UL 248-1, UL 248-14
Manufacturer approval note: UL/cUL, CSA, PSE, TÜV and KC are listed; exact approvals vary by current and voltage option.
Source: Hollyland Current Fuse catalogue, printed page 44
