HOLLY FUSE 62S-040H 250V AC 4A Slow-Blow Tube Fuse

Name: HOLLY FUSE 62S-040H 250V AC 4A Slow-Blow Tube Fuse
Brand: Hollyland
SKU: 62S-040H

Part Number: 62S-040H

● Check availability

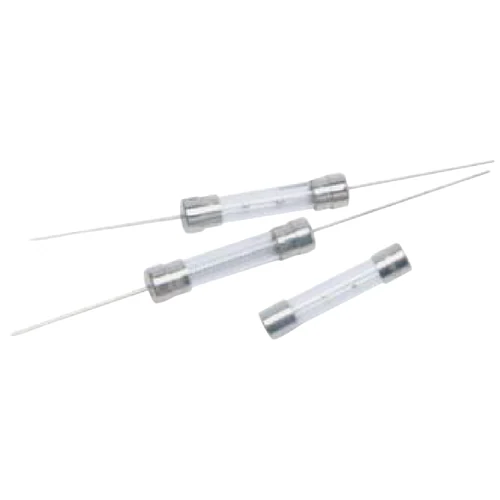

HOLLY FUSE 62S-040H is a slow-blow tube fuse in the 61S family, specified at 4A, 250V AC.

Rated Current4A

Rated Voltage250V AC

Breaking Capacity200A at 250V AC

Package6.35×32mm

Tags

250V AC 6.35×32mm 61S Glass/Ceramic Tube Fuse Slow-Blow

HOLLY FUSE 62S-040H is a slow-blow tube fuse in the 61S series, specified at 4A, 250V AC. Interrupting capacity: 200A at 250V AC. Standards: UL 248-1, UL 248-14. Source: Hollyland Current Fuse catalogue p44.

Technical Specifications

Part Number: 62S-040H
Manufacturer Part Number: 62S-040H
Series: 61S
Fuse Type: Glass/Ceramic Tube Fuse
Current Rating: 4A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 200A at 250V AC
I²t: 32.96 A²s
Operating Temperature: -55°C to +125°C
Package / Dimensions: 6.35×32mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Ferrule
Fuse Speed: Time Delay
Reference Lead Time: 2–4 weeks
Rated current: 4A
Rated voltage: 250V AC
Fuse characteristic: Slow-Blow
Fuse construction: Glass/Ceramic Tube Fuse
Interrupting capacity: 200A at 250V AC
Standards: UL 248-1, UL 248-14
Manufacturer approval note: UL/cUL, CSA, PSE, TÜV and KC are listed; exact approvals vary by current and voltage option.
Source: Hollyland Current Fuse catalogue, printed page 44
