What are the current and voltage ratings of 61S-016L?

61S-016L is rated 1.6A at 125V AC.

What is the breaking capacity of 61S-016L?

61S-016L has a breaking capacity of 10,000A at 125V AC. Confirm this covers the available fault current at the installation point.

What package size does 61S-016L use?

61S-016L uses 6.35×32mm package size.

Which standards and approvals apply to 61S-016L?

61S-016L is listed under UL 248-1, UL 248-14.

What is 61S-016L used for?

61S-016L is listed for Electronic Circuit Protection applications. Verify suitability for your circuit before ordering.

What are the ordering terms for 61S-016L?

61S-016L: typical lead time 2–4 weeks. Submit a quote request for a firm quotation.

Hollyland

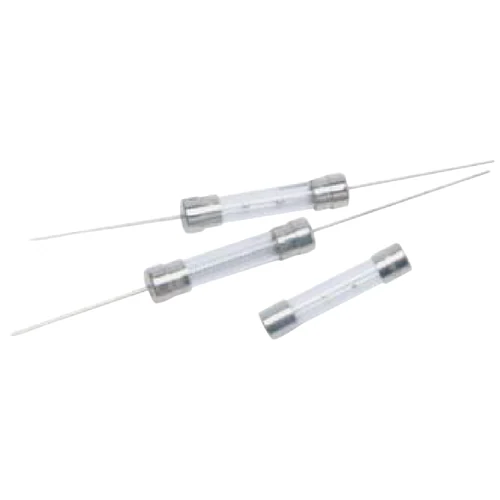

HOLLY FUSE 61S-016L 125V AC 1.6A Slow-Blow Tube Fuse

Name: HOLLY FUSE 61S-016L 125V AC 1.6A Slow-Blow Tube Fuse
Brand: Hollyland
SKU: 61S-016L

Part Number: 61S-016L

● Check availability

Manufacturer-checked specifications for HOLLY FUSE 61S-016L: 1.6A, 125V AC. Interrupting capacity: 10,000A at 125V AC.

Rated Current1.6A

Rated Voltage125V AC

Breaking Capacity10,000A at 125V AC

Package6.35×32mm

Tags

HOLLY FUSE 61S-016L: slow-blow tube fuse, 1.6A, 125V AC. Interrupting capacity: 10,000A at 125V AC. Standards: UL 248-1, UL 248-14. Manufacturer source: Current Fuse catalogue p44.

Specifications

Series: 61S
Rated current: 1.6A
Rated voltage: 125V AC
Fuse characteristic: Slow-Blow
Fuse construction: Glass/Ceramic Tube Fuse
Interrupting capacity: 10,000A at 125V AC
Standards: UL 248-1, UL 248-14
Manufacturer approval note: UL/cUL, CSA, PSE, TÜV and KC are listed
exact approvals vary by current and voltage option.
Source: Hollyland Current Fuse catalogue, printed page 44

Technical Specifications

Part Number: 61S-016L
Manufacturer Part Number: 61S-016L
Series: 61S
Fuse Type: Glass/Ceramic Tube Fuse
Current Rating: 1.6A
Voltage Rating: 125V AC
AC / DC: AC
Breaking Capacity: 10,000A at 125V AC
I²t: 11.52 A²s
Operating Temperature: -55°C to +125°C
Package / Dimensions: 6.35×32mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Ferrule
Fuse Speed: Time Delay
Reference Lead Time: 2–4 weeks
Rated current: 1.6A
Rated voltage: 125V AC
Fuse characteristic: Slow-Blow
Fuse construction: Glass/Ceramic Tube Fuse
Interrupting capacity: 10,000A at 125V AC
Standards: UL 248-1, UL 248-14
Manufacturer approval note: UL/cUL, CSA, PSE, TÜV and KC are listed; exact approvals vary by current and voltage option.
Source: Hollyland Current Fuse catalogue, printed page 44
