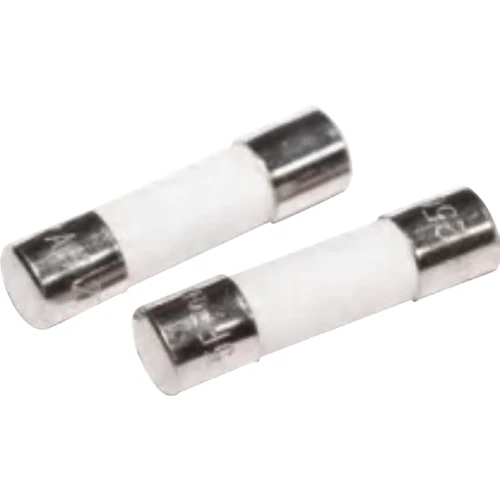

HOLLY FUSE 5FF-100H 250V AC 10A Very Fast-Acting Ceramic Fuse

Name: HOLLY FUSE 5FF-100H 250V AC 10A Very Fast-Acting Ceramic Fuse
Brand: Hollyland
SKU: 5FF-100H

Part Number: 5FF-100H

● Check availability

5FF-100H is part of the HOLLY FUSE 5FF range, specified at 10A, 250V AC.

Rated Current10A

Rated Voltage250V AC

Breaking Capacity1,500A at 250V AC

Package5.2×20mm

Tags

250V AC 5.2×20mm 5FF Ceramic Tube Fuse Very Fast Acting

Designed for circuit protection, HOLLY FUSE 5FF-100H is specified at 10A, 250V AC within the 5FF series. Interrupting capacity: 1,500A at 250V AC. Standards: IEC 60127. Source: Hollyland Current Fuse catalogue p41.

Technical Specifications

Part Number: 5FF-100H
Manufacturer Part Number: 5FF-100H
Series: 5FF
Fuse Type: Ceramic Tube Fuse
Current Rating: 10A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 1,500A at 250V AC
I²t: 33.48 A²s
Operating Temperature: -55°C to +125°C
Package / Dimensions: 5.2×20mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: IEC 60127
Terminal Type: Ferrule
Fuse Speed: Very Fast Acting
Reference Lead Time: 2–4 weeks
Rated current: 10A
Rated voltage: 250V AC
Fuse characteristic: Very Fast-Acting
Fuse construction: Ceramic Tube Fuse
Interrupting capacity: 1,500A at 250V AC
Standards: IEC 60127
Manufacturer approval note: No safety approval column is shown in the detailed product table.
Source: Hollyland Current Fuse catalogue, printed page 41
