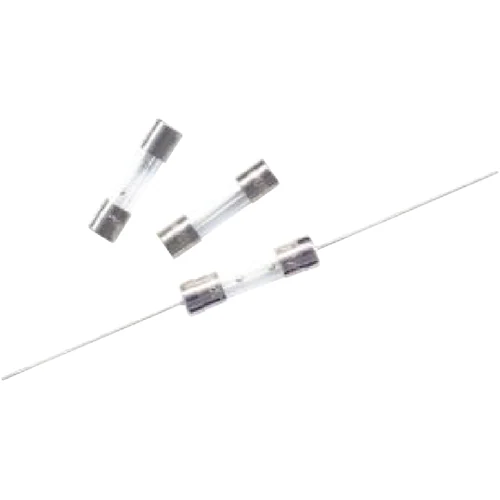

HOLLY FUSE 52S-0315L 125V AC 315mA Slow-Blow Glass Fuse
● Check availability52S-0315L is part of the HOLLY FUSE 51S range, specified at 315mA, 125V AC.
Rated Current315mA
Rated Voltage125V AC
Breaking Capacity10,000A at 125V AC
Package5.2×20mm
QUICK RFQ
Request a quote for 52S-0315L
Submit directly from this product page. We will reply with availability, lead time and pricing.
Part Number52S-0315LBrandHollylandRequested Qty100
Designed for circuit protection, HOLLY FUSE 52S-0315L is specified at 315mA, 125V AC within the 51S series. Interrupting capacity: 10,000A at 125V AC. Standards: UL 248-1, UL 248-14. Source: Hollyland Current Fuse catalogue p34.
Technical Specifications
- Part Number
- 52S-0315L
- Manufacturer Part Number
- 52S-0315L
- Series
- 51S
- Fuse Type
- Glass Tube Fuse
- Current Rating
- 315mA
- Voltage Rating
- 125V AC
- AC / DC
- AC
- Breaking Capacity
- 10,000A at 125V AC
- I²t
- 0.5257 A²s
- Operating Temperature
- -55°C to +125°C
- Package / Dimensions
- 5.2×20mm
- Mounting
- Cartridge / Clip
- Application
- Electronic Circuit Protection
- Standard
- UL 248-1 · UL 248-14
- Terminal Type
- Ferrule
- Fuse Speed
- Time Delay
- Reference Lead Time
- 2–4 weeks
- Rated current
- 315mA
- Rated voltage
- 125V AC
- Fuse characteristic
- Slow-Blow
- Fuse construction
- Glass Tube Fuse
- Interrupting capacity
- 10,000A at 125V AC
- Standards
- UL 248-1, UL 248-14
- Manufacturer approval note
- UL/cUL, UR, CSA, PSE and KC are listed; exact approvals vary by current rating and H/L voltage option.
- Source
- Hollyland Current Fuse catalogue, printed page 34
