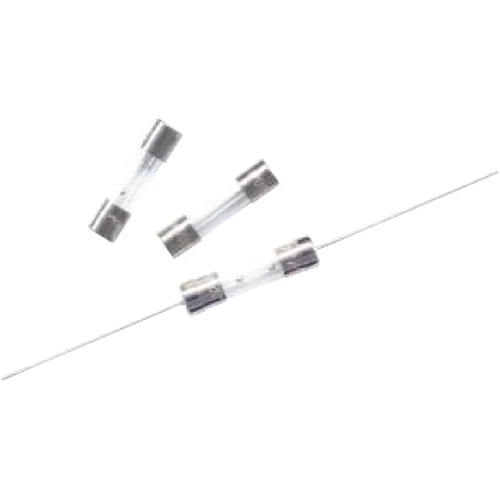

HOLLY FUSE 52S-0315H 250V AC 315mA Slow-Blow Glass Fuse
Hollyland

HOLLY FUSE 52S-0315H 250V AC 315mA Slow-Blow Glass Fuse

Part Number: 52S-0315H

● Check availability

HOLLY FUSE 52S-0315H combines its rated protection value with 250V AC operation in the 51S product family.

Rated Current315mA
Rated Voltage250V AC
Breaking Capacity35A at 250V AC
Package5.2×20mm
Tags
Share

Part 52S-0315H is a HOLLY FUSE 51S-series slow-blow glass fuse with specifications of 315mA, 250V AC. Interrupting capacity: 35A at 250V AC. Standards: UL 248-1, UL 248-14. Technical data checked against catalogue p34.

Technical Specifications

Part Number
52S-0315H
Manufacturer Part Number
52S-0315H
Series
51S
Fuse Type
Glass Tube Fuse
Current Rating
315mA
Voltage Rating
250V AC
AC / DC
AC
Breaking Capacity
35A at 250V AC
I²t
0.5257 A²s
Operating Temperature
-55°C to +125°C
Package / Dimensions
5.2×20mm
Mounting
Cartridge / Clip
Application
Electronic Circuit Protection
Standard
UL 248-1 · UL 248-14
Terminal Type
Ferrule
Fuse Speed
Time Delay
Reference Lead Time
2–4 weeks
Minimum Order
10 pcs
Sample Status
Sample available
Rated current
315mA
Rated voltage
250V AC
Fuse characteristic
Slow-Blow
Fuse construction
Glass Tube Fuse
Interrupting capacity
35A at 250V AC
Standards
UL 248-1, UL 248-14
Manufacturer approval note
UL/cUL, UR, CSA, PSE and KC are listed; exact approvals vary by current rating and H/L voltage option.
Source
Hollyland Current Fuse catalogue, printed page 34
