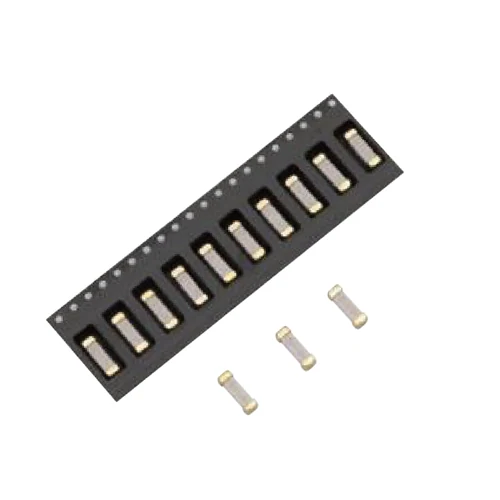

HOLLY FUSE 3NT-080H 250V AC 8A SMD Nano Fuse

Name: HOLLY FUSE 3NT-080H 250V AC 8A SMD Nano Fuse
Brand: Hollyland
SKU: 3NT-080H

Part Number: 3NT-080H

● Check availability

Use HOLLY FUSE 3NT-080H where a slow-blow / time-lag fuse rated 8A and 250V AC is required.

Rated Current8A

Rated Voltage250V AC

Breaking Capacity50A at 250V AC / 100A at 125V AC/DC

Package1032

Tags

1032 250V AC 3NT Slow-Blow / Time-Lag SMD Nano Fuse

HOLLY FUSE specifies 3NT-080H at 8A and 250V AC. The device has a slow-blow / time-lag characteristic and catalog-grounded technical data from Current Fuse p14.

Specifications

Series: 3NT
Rated current: 8A
Rated voltage: 250V AC
Fuse characteristic: Slow-Blow / Time-Lag
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 250V AC / 100A at 125V AC/DC
Manufacturer-listed approval authorities: cURus. Availability varies by rating/voltage
verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p14

Technical Specifications

Part Number: 3NT-080H
Manufacturer Part Number: 3NT-080H
Series: 3NT
Fuse Type: SMD Nano Fuse
Current Rating: 8A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 50A at 250V AC / 100A at 125V AC/DC
Operating Temperature: -55°C to +125°C
Package / Dimensions: 1032
Mounting: SMD
Application: PCB / Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: SMD End Pad
Fuse Speed: Time Delay
Rated current: 8A
Rated voltage: 250V AC
Fuse characteristic: Slow-Blow / Time-Lag
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 250V AC / 100A at 125V AC/DC
Manufacturer-listed approval authorities: cURus. Availability varies by rating/voltage; verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p14
