Hollyland

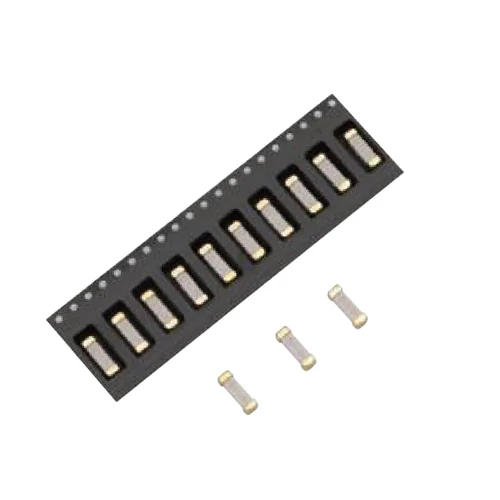

HOLLY FUSE 3NT-0320H 250V AC 315mA SMD Nano Fuse

Name: HOLLY FUSE 3NT-0320H 250V AC 315mA SMD Nano Fuse
Brand: Hollyland
SKU: 3NT-0320H

Part Number: 3NT-0320H

● Check availability

3NT-0320H from HOLLY FUSE provides 315mA protection at 250V AC in the 3NT family.

Rated Current315mA

Rated Voltage250V AC

Breaking Capacity50A at 250V AC / 100A at 125V AC/DC

Package1032

Tags

1032 250V AC 3NT Slow-Blow / Time-Lag SMD Nano Fuse

For circuit designs using the 3NT family, part 3NT-0320H provides a 315mA rating at 250V AC. It follows UL 248-1, UL 248-14. Source: Hollyland Current Fuse p14.

Specifications

Series: 3NT
Rated current: 315mA
Rated voltage: 250V AC
Fuse characteristic: Slow-Blow / Time-Lag
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 250V AC / 100A at 125V AC/DC
Manufacturer-listed approval authorities: cURus. Availability varies by rating/voltage
verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p14

Technical Specifications

Part Number: 3NT-0320H
Manufacturer Part Number: 3NT-0320H
Series: 3NT
Fuse Type: SMD Nano Fuse
Current Rating: 315mA
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 50A at 250V AC / 100A at 125V AC/DC
Operating Temperature: -55°C to +125°C
Package / Dimensions: 1032
Mounting: SMD
Application: PCB / Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: SMD End Pad
Fuse Speed: Time Delay
Rated current: 315mA
Rated voltage: 250V AC
Fuse characteristic: Slow-Blow / Time-Lag
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 250V AC / 100A at 125V AC/DC
Manufacturer-listed approval authorities: cURus. Availability varies by rating/voltage; verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p14
