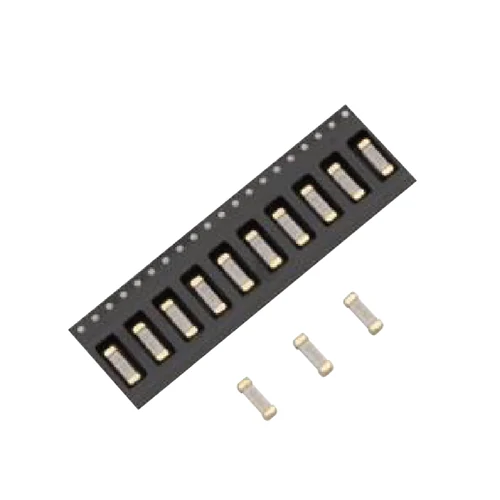

HOLLY FUSE 3NF-100L1 75V DC 10A SMD Nano Fuse

Name: HOLLY FUSE 3NF-100L1 75V DC 10A SMD Nano Fuse
Brand: Hollyland
SKU: 3NF-100L1

Part Number: 3NF-100L1

● Check availability

HOLLY FUSE 3NF part 3NF-100L1 combines a 10A current rating with 75V DC operation.

Rated Current10A

Rated Voltage75V DC

Breaking Capacity600A at 75V DC

Package1032

Tags

1032 3NF 75V DC fast acting SMD Nano Fuse

Part 3NF-100L1 is a 3NF-series smd nano fuse for pcb / electronic circuit protection, rated 10A at 75V DC. Applicable standards: UL 248-1, UL 248-14.

Series: 3NF
Rated current: 10A
Rated voltage: 75V DC
Fuse characteristic: Fast Acting
Standards: UL 248-1, UL 248-14
Interrupting capacity: 600A at 75V DC
Manufacturer-listed approval authorities: cURus, PSE. Availability varies by rating/voltage
verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p13

Technical Specifications

Part Number: 3NF-100L1
Manufacturer Part Number: 3NF-100L1
Series: 3NF
Fuse Type: SMD Nano Fuse
Current Rating: 10A
Voltage Rating: 75V DC
AC / DC: DC
Breaking Capacity: 600A at 75V DC
Operating Temperature: -55°C to +125°C
Package / Dimensions: 1032
Mounting: SMD
Application: PCB / Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: SMD End Pad
Fuse Speed: Fast Acting
Rated current: 10A
Rated voltage: 75V DC
Fuse characteristic: Fast Acting
Standards: UL 248-1, UL 248-14
Interrupting capacity: 600A at 75V DC
Manufacturer-listed approval authorities: cURus, PSE. Availability varies by rating/voltage; verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p13
