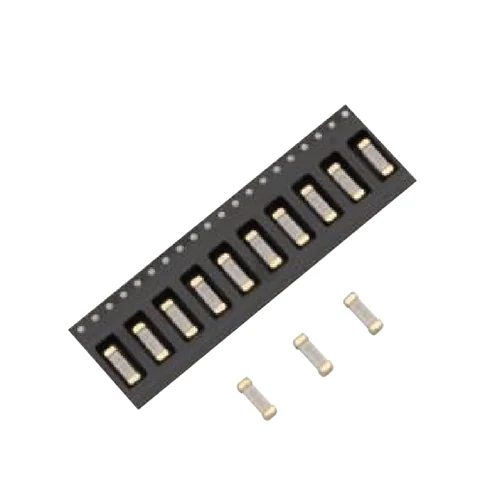

HOLLY FUSE 3NF-100L 125V DC 10A SMD Nano Fuse

Name: HOLLY FUSE 3NF-100L 125V DC 10A SMD Nano Fuse
Brand: Hollyland
SKU: 3NF-100L

Part Number: 3NF-100L

● Check availability

3NF-100L from HOLLY FUSE provides 10A protection at 125V DC in the 3NF family.

Rated Current10A

Rated Voltage125V DC

Breaking Capacity300A at 125V DC

Package1032

Tags

1032 125V DC 3NF fast acting SMD Nano Fuse

For circuit designs using the 3NF family, part 3NF-100L provides a 10A rating at 125V DC. It follows UL 248-1, UL 248-14. Source: Hollyland Current Fuse p13.

Specifications

Series: 3NF
Rated current: 10A
Rated voltage: 125V DC
Fuse characteristic: Fast Acting
Standards: UL 248-1, UL 248-14
Interrupting capacity: 300A at 125V DC
Manufacturer-listed approval authorities: cURus, PSE. Availability varies by rating/voltage
verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p13

Technical Specifications

Part Number: 3NF-100L
Manufacturer Part Number: 3NF-100L
Series: 3NF
Fuse Type: SMD Nano Fuse
Current Rating: 10A
Voltage Rating: 125V DC
AC / DC: DC
Breaking Capacity: 300A at 125V DC
Operating Temperature: -55°C to +125°C
Package / Dimensions: 1032
Mounting: SMD
Application: PCB / Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: SMD End Pad
Fuse Speed: Fast Acting
Rated current: 10A
Rated voltage: 125V DC
Fuse characteristic: Fast Acting
Standards: UL 248-1, UL 248-14
Interrupting capacity: 300A at 125V DC
Manufacturer-listed approval authorities: cURus, PSE. Availability varies by rating/voltage; verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p13
