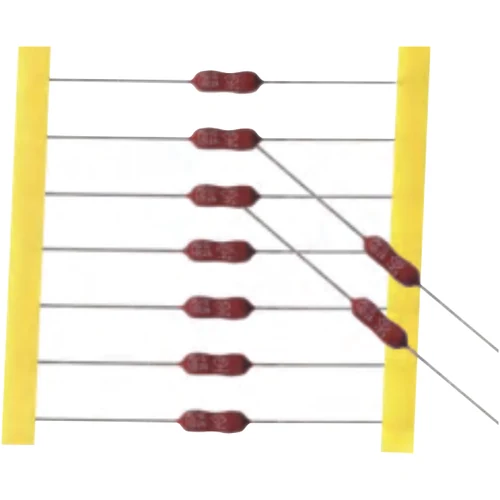

HOLLY FUSE 30TS-080H2 250V AC 8A Slow-Blow Microfuse

Name: HOLLY FUSE 30TS-080H2 250V AC 8A Slow-Blow Microfuse
Brand: Hollyland
SKU: 30TS-080H2

Part Number: 30TS-080H2

● Check availability

Technical listing for 30TS-080H2: 8A, 250V AC slow-blow microfuse with manufacturer-verified operating characteristics.

Rated Current8A

Rated Voltage250V AC

Breaking Capacity50A at 250V AC

Package3.6×10mm

Tags

250V AC 3.6×10mm Cartridge / Clip Subminiature Fuses Time-Lag (T)

The 30TS-080H2 fuse is listed by HOLLY FUSE for 8A, 250V AC. It belongs to the 30TS family and uses a slow-blow characteristic. Interrupting capacity: 50A at 250V AC. Manufacturer source: Current Fuse catalogue p25.

Technical Specifications

Part Number: 30TS-080H2
Manufacturer Part Number: 30TS-080H2
Series: 30TS
Fuse Type: Microfuse
Current Rating: 8A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 50A at 250V AC
I²t: 62.39 A²s
Pre-arcing I²t: 62.39
Total I²t: 62.39
Operating Temperature: -55°C to +125°C
Package / Dimensions: 3.6×10mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Radial Lead
Fuse Speed: Time Delay
Reference Lead Time: 2–4 weeks
Rated current: 8A
Rated voltage: 250V AC
Fuse characteristic: Slow-Blow
Fuse construction: Microfuse
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 250V AC
Manufacturer-listed approval authorities: CCC, VDE, UL/cUL, UR/cUR, CSA and PSE are listed by the manufacturer; exact approvals vary by rating and voltage.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse catalogue, printed page 25
