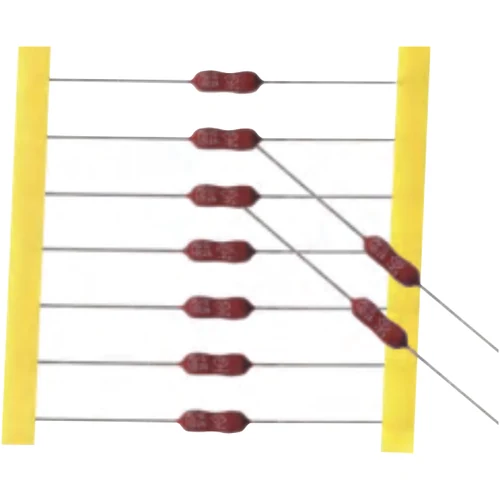

HOLLY FUSE 30TS-080H1 350V AC 8A Slow-Blow Microfuse

Name: HOLLY FUSE 30TS-080H1 350V AC 8A Slow-Blow Microfuse
Brand: Hollyland
SKU: 30TS-080H1

Part Number: 30TS-080H1

● Check availability

HOLLY FUSE 30TS-080H1 is a slow-blow microfuse in the 30TS family, rated 8A, 350V AC.

Rated Current8A

Rated Voltage350V AC

Breaking Capacity50A at 350V AC

Package3.6×10mm

Tags

3.6×10mm Cartridge / Clip Subminiature Fuses Time-Lag (T)

HOLLY FUSE 30TS-080H1 is a slow-blow microfuse in the 30TS series, rated 8A, 350V AC. Interrupting capacity: 50A at 350V AC. Standards: UL 248-1, UL 248-14. Source: Hollyland Current Fuse catalogue p25.

Technical Specifications

Part Number: 30TS-080H1
Manufacturer Part Number: 30TS-080H1
Series: 30TS
Fuse Type: Microfuse
Current Rating: 8A
Voltage Rating: 350V AC
AC / DC: AC
Breaking Capacity: 50A at 350V AC
I²t: 62.39 A²s
Pre-arcing I²t: 62.39
Total I²t: 62.39
Operating Temperature: -55°C to +125°C
Package / Dimensions: 3.6×10mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Radial Lead
Fuse Speed: Time Delay
Reference Lead Time: 2–4 weeks
Rated current: 8A
Rated voltage: 350V AC
Fuse characteristic: Slow-Blow
Fuse construction: Microfuse
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 350V AC
Manufacturer-listed approval authorities: CCC, VDE, UL/cUL, UR/cUR, CSA and PSE are listed by the manufacturer; exact approvals vary by rating and voltage.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse catalogue, printed page 25
