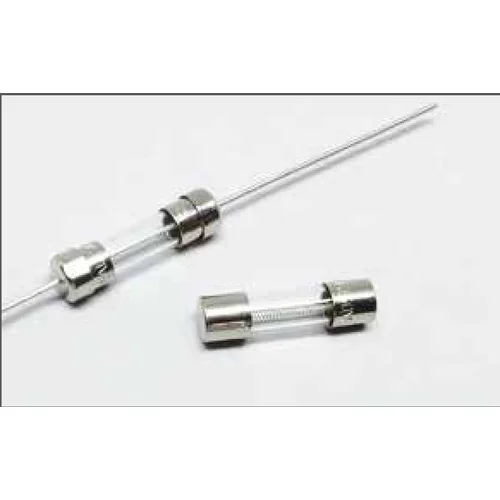

Walter TME315mA250V 315mA 250VAC Time-Lag 5.2×20 mm Fuse
● LT: 4-6wThe Walter TME315mA250V (TME Series) is a time-lag glass tube fuses rated 315mA at 250VAC, 5.2×20 mm.
Rated Current315mA
Rated Voltage250VAC
Breaking Capacity100A@250V AC
Package5.2×20 mm
QUICK RFQ
Request a quote for TME315mA250V
Submit directly from this product page. We will reply with availability, lead time and pricing.
Part NumberTME315mA250VBrandWalterRequested Qty100
The Walter TME315mA250V (TME Series) is a time-lag glass tube fuses rated 315mA at 250VAC in a 5.2×20 mm package. Breaking capacity: 100A@250V AC. Operating temperature: -55°C to 125°C. It is designed for use in consumer electronics, power supplies, and industrial overcurrent protection applications.
Part number: TME315mA250V. Brand: Walter Electronic.
Technical Specifications
- Part Number
- TME315mA250V
- Manufacturer Part Number
- TME315mA250V
- Series
- TME
- Fuse Type
- Cartridge
- Current Rating
- 315mA
- Voltage Rating
- 250VAC
- AC / DC
- AC
- Breaking Capacity
- 100A@250V AC
- Operating Temperature
- -55°C to +125°C
- Package / Dimensions
- 5.2×20 mm
- Application
- Industrial Power
- Standard
- IEC 60127 · UL 248-1
- Terminal Type
- Axial Lead
- Fuse Speed
- Time Delay
- Approvals
- cULus · VDE
- Certifications
- cULus | VDE
- Reference Lead Time
- 4-6 weeks
- Minimum Order
- 1000 pcs
