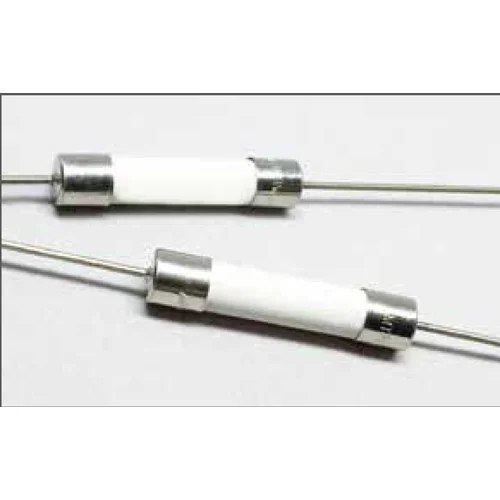

Walter MTP15.00A250V 15.00A 250VAC Time-Lag 6.35×31.75 mm Fuse
● LT: 4-6wThe Walter MTP15.00A250V (MTP Series) is a time-lag ceramic tube fuses rated 15.00A at 250VAC, 6.35×31.75 mm.
Rated Current15.00A
Rated Voltage250VAC
Breaking Capacity1500A@250V AC
Package6.35×31.75 mm
QUICK RFQ
Request a quote for MTP15.00A250V
Submit directly from this product page. We will reply with availability, lead time and pricing.
Part NumberMTP15.00A250VBrandWalterRequested Qty100
The Walter MTP15.00A250V (MTP Series) is a time-lag ceramic tube fuses rated 15.00A at 250VAC in a 6.35×31.75 mm package. Breaking capacity: 1500A@250V AC. Operating temperature: -55°C to 125°C. It is designed for use in consumer electronics, power supplies, and industrial overcurrent protection applications.
Part number: MTP15.00A250V. Brand: Walter Electronic.
Technical Specifications
- Part Number
- MTP15.00A250V
- Manufacturer Part Number
- MTP15.00A250V
- Series
- MTP
- Fuse Type
- Cartridge
- Current Rating
- 15.00A
- Voltage Rating
- 250VAC
- AC / DC
- AC
- Breaking Capacity
- 1500A@250V AC
- Operating Temperature
- -55°C to +125°C
- Package / Dimensions
- 6.35×31.75 mm
- Application
- Industrial Power
- Standard
- IEC 60127 · UL 248-1
- Terminal Type
- Axial Lead
- Fuse Speed
- Time Delay
- Approvals
- cULus · TUV · VDE
- Certifications
- cULus | VDE | TÜV
- Reference Lead Time
- 4-6 weeks
- Minimum Order
- 1000 pcs
