PEC 2987 EVFP (φ38 Tin) 400A DC500V High Voltage Fuse
● In StockPEC 2987 is a 400a dc500v high voltage fuse in the EVFP (φ38 Tin) family, φ38 format.
Rated Current400A
Rated VoltageDC500V
Breaking Capacity16000A
Packageφ38
QUICK RFQ
Request a quote for 2987
Submit directly from this product page. We will reply with availability, lead time and pricing.
Part Number2987BrandPECRequested Qty100
PEC 2987 EVFP (φ38 Tin) 400A DC500V High Voltage Fuse
Breaking capacity: 16000A; Operating temperature: −40°C to +85°C; Mounting: Bolt-On; Compliance markings: RoHS · ELV.
Catalogue application context: Hybrid Vehicles, Electric Vehicles.
Verify the final current, voltage, temperature and installation requirements in the target circuit before production use.
Technical Specifications
- Part Number
- 2987
- Manufacturer Part Number
- 2987
- Series
- EVFP φ38 Tin Plating Series
- Fuse Type
- High Voltage Fuse
- Current Rating
- 400A
- Voltage Rating
- DC500V
- AC / DC
- DC
- Breaking Capacity
- 16000A
- Operating Temperature
- −40°C to +85°C
- Package / Dimensions
- φ38
- Mounting
- Bolt-On
- Application
- Electric Vehicles · Hybrid Vehicles
- Terminal Type
- Bolt Lug (M6/M8)
- Utilization Class
- EVF
- Approvals
- ELV · RoHS
- Certifications
- RoHS · ELV
- Reference Lead Time
- 4–8 weeks
- Minimum Order
- 100 pcs
- Sample Status
- Sample available

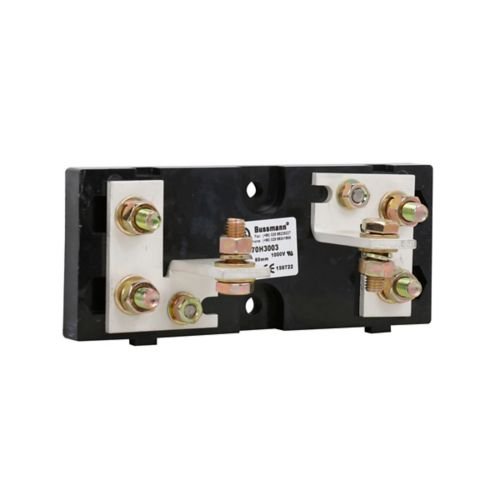

Eaton Bussmann 170H3003 630A 1000V max DIN 43653 Fixed-Center Fuse Block
