PEC 2877 EVFC (φ38) 350A DC450V High Voltage Fuse
● Contact for AvailabilityPEC 2877 is a 350a dc450v high voltage fuse in the EVFC (φ38) family, φ38 format.
Rated Current350A
Rated VoltageDC450V
Breaking Capacity6000A
Packageφ38
QUICK RFQ
Request a quote for 2877
Submit directly from this product page. We will reply with availability, lead time and pricing.
Part Number2877BrandPECRequested Qty100
PEC 2877 EVFC (φ38) 350A DC450V High Voltage Fuse
Breaking capacity: 6000A; Operating temperature: −40°C to +125°C; Mounting: Bolt-On; Compliance markings: RoHS · ELV; Ni plating; high-voltage automotive fuse with excellent durability; recommended torque (16.0±1.0)N·m..
Catalogue application context: Hybrid Vehicles, Electric Vehicles.
Verify the final current, voltage, temperature and installation requirements in the target circuit before production use.
Technical Specifications
- Part Number
- 2877
- Manufacturer Part Number
- 2877
- Series
- EVFC (φ38)
- Fuse Type
- High Voltage Fuse
- Current Rating
- 350A
- Voltage Rating
- DC450V
- AC / DC
- DC
- Breaking Capacity
- 6000A
- Operating Temperature
- −40°C to +125°C
- Package / Dimensions
- φ38
- Mounting
- Bolt-On
- Application
- Electric Vehicles · Hybrid Vehicles
- Terminal Type
- Bolt Lug (M10)
- Utilization Class
- EVF
- Approvals
- ELV · RoHS
- Certifications
- RoHS · ELV

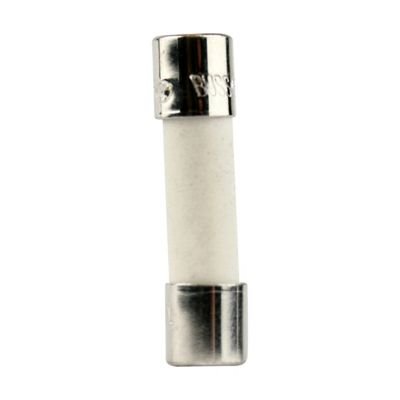

Eaton Bussmann S505-4-R 4A 250V AC / 32V DC IEC High-Breaking Capacity 5x20mm Ceramic Tube Fuse
