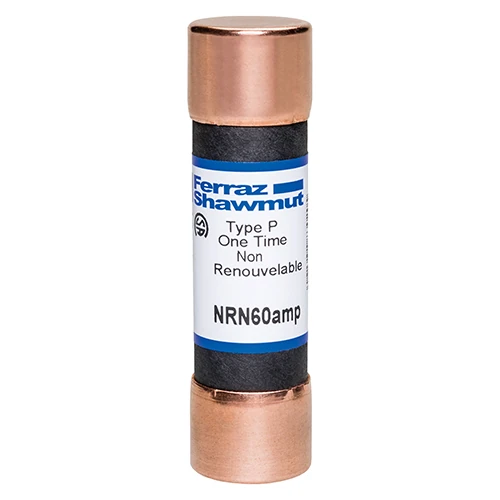

NRN60 extends the Mersen NRN Series lineup with a 60A rating. For selection, note the 250V AC rating and 10kA AC interrupting data. The series is intended for applications needing standard non-time-delay protection for general-purpose AC circuits.
Submit directly from this product page. We will reply with availability, lead time and pricing.
At 60A, NRN60 is one of the rated options available in Mersen’s NRN Series. For coordination, the key ratings are 250V AC and 10kA AC interrupting performance. Its circuit-protection behavior is defined by standard non-time-delay protection for general-purpose AC circuits. The Class H format uses ferrule / blade (amp-dependent) terminals with cartridge/clip mounting. Typical selection contexts include Resistive Loads, Control Panels, General-Purpose Circuits. Use the official Mersen datasheet to confirm final coordination and dimensions.
