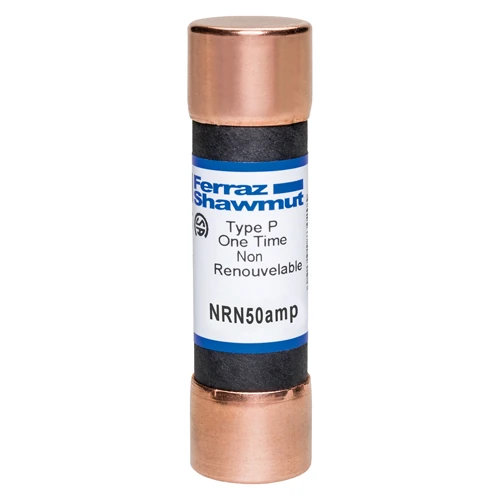

Mersen NRN50 50A 250V Class H Non-Time-Delay Fuse

Name: Mersen NRN50 50A 250V Class H Non-Time-Delay Fuse
Brand: Mersen
SKU: NRN50

Part Number: NRN50

● Contact for Availability

Within the Mersen NRN Series, NRN50 is configured for 50A. For selection, note the 250V AC rating and 10kA AC interrupting data. The series is intended for applications needing standard non-time-delay protection for general-purpose AC circuits.

Rated Current50A

Rated Voltage250V AC

Breaking Capacity10kA AC

PackageClass H/K

Tags

class h Mersen non-time-delay NRN Series NRN50

Mersen lists NRN50 in the NRN Series as a 50A circuit-protection device. For coordination, the key ratings are 250V AC and 10kA AC interrupting performance. Its circuit-protection behavior is defined by standard non-time-delay protection for general-purpose AC circuits. The Class H format uses ferrule / blade (amp-dependent) terminals with cartridge/clip mounting. Typical selection contexts include Resistive Loads, Control Panels, General-Purpose Circuits. Use the official Mersen datasheet to confirm final coordination and dimensions.

Technical Specifications

Part Number: NRN50
Manufacturer Part Number: NRN50
Series: NRN Series
Fuse Type: Non-Time-Delay Class H Fuse
Current Rating: 50A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 10kA AC
Package / Dimensions: Class H/K
Mounting: Cartridge / Clip
Application: Control panels · General purpose circuits · Lighting circuit protection · Resistive Loads
Standard: CSA Class 1422
Terminal Type: Ferrule / Blade (amp-dependent)
Fuse Speed: Non-Time-Delay
Utilization Class: Class H
Approvals: CSA Certified
Certifications: CSA Certified
