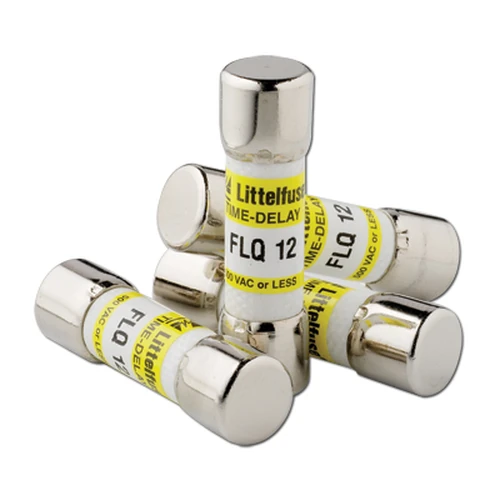

Littelfuse FLQ03.2 3.2A 500V Time-Delay Midget Fuse

Name: Littelfuse FLQ03.2 3.2A 500V Time-Delay Midget Fuse
Brand: Littelfuse
SKU: FLQ03.2

Part Number: FLQ03.2

● Contact for Availability

The FLQ Series FLQ03.2 is a Littelfuse time-delay midget fuse rated 3.2A at 500V AC, suited to motor, transformer and control circuits.

Rated Current3.2A

Rated Voltage500V AC

Breaking Capacity10kA

Package10×38mm

Tags

10×38mm 3.2A 500V FLQ Series FLQ03.2 Littelfuse time-delay

Littelfuse FLQ03.2 combines a 3.2A rating and 500V AC capability with time-delay fuse behavior. With 38.1 × 10.31mm dimensions and a 10kA interrupting rating, the fuse suits the listed cartridge / clip mounting style. Typical applications include motor, transformer and control circuits; the product is listed to UL 248-14 with UL Listed, CSA, CE and RoHS approvals.
