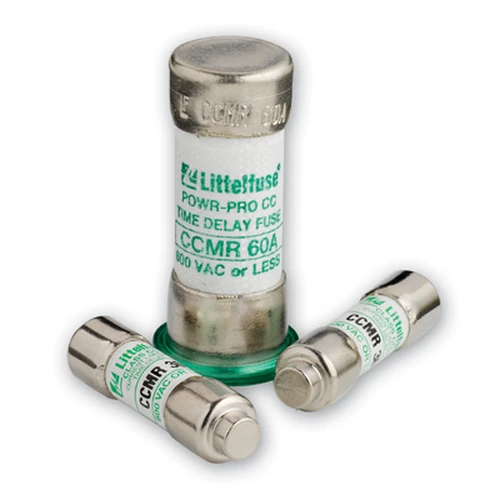

Littelfuse CCMR04.5 4.5A 600V Class CC Dual-Element Time-Delay Fuse

Name: Littelfuse CCMR04.5 4.5A 600V Class CC Dual-Element Time-Delay Fuse
Brand: Littelfuse
SKU: CCMR04.5

Part Number: CCMR04.5

● Contact for Availability

Choose Littelfuse CCMR04.5 for 4.5A, 600V AC / 300V DC dual-element time-delay circuit protection with a 200kA AC interrupting rating.

Rated Current4.5A

Rated Voltage600V AC / 300V DC

Breaking Capacity200kA AC

Package10×38mm

Tags

4.5A 600V CCMR Series CCMR04.5 class cc Littelfuse time-delay

Part CCMR04.5 is a Littelfuse dual-element time-delay Class CC fuse rated 4.5A, with a 600V AC / 300V DC voltage rating. A 200kA AC breaking capacity complements the 10×38mm construction and cartridge / clip installation style. For motor, contactor protection and heating, confirm final circuit suitability using the datasheet, UL 248-4 and applicable UL Listed, CSA, CE and RoHS marks.

Technical Specifications

Part Number: CCMR04.5
Manufacturer Part Number: CCMR04.5
Series: CCMR Series
Fuse Type: Dual-Element Time-Delay Class CC Fuse
Current Rating: 4.5A
Voltage Rating: 600V AC / 300V DC
AC / DC: AC/DC
Breaking Capacity: 200kA AC
Package / Dimensions: 10×38mm
Mounting: Cartridge / Clip
Application: Contactor Protection · Heating · Industrial Control Protection · Motor
Standard: UL 248-4
Terminal Type: Ferrule
Fuse Speed: Dual Element · Time Delay
Utilization Class: Class CC
Approvals: CE · CSA · RoHS · UL Listed
Certifications: UL Listed · CSA · CE · RoHS
DC Voltage Rating: 300V DC
DC Interrupting Rating: 20kA
