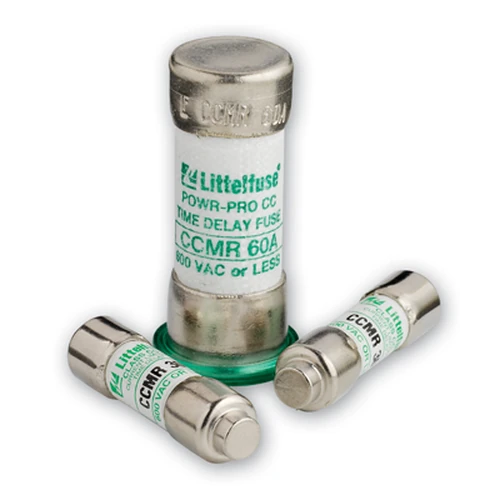

Littelfuse CCMR035 35A 600V Class CD Dual-Element Time-Delay Fuse

Name: Littelfuse CCMR035 35A 600V Class CD Dual-Element Time-Delay Fuse
Brand: Littelfuse
SKU: CCMR035

Part Number: CCMR035

● Contact for Availability

Littelfuse CCMR035 provides 35A/600V AC / 250V DC protection with dual-element time-delay characteristics and 200kA AC interrupting capacity.

Rated Current35A

Rated Voltage600V AC / 250V DC

Breaking Capacity200kA AC

PackageClass CD

Tags

35A 600V CCMR Series CCMR035 Class CD Littelfuse time-delay

For 35A circuits, Littelfuse CCMR035 offers 600V AC / 250V DC capability as a dual-element time-delay Class CD fuse. A 200kA AC breaking capacity complements the Class CD construction and cartridge / clip installation style. For motor, contactor protection and heating, confirm final circuit suitability using the datasheet, UL 248-18 and applicable UL Listed and CSA marks.

Technical Specifications

Part Number: CCMR035
Manufacturer Part Number: CCMR035
Series: CCMR Series
Fuse Type: Dual-Element Time-Delay Class CD Fuse
Current Rating: 35A
Voltage Rating: 600V AC / 250V DC
AC / DC: AC/DC
Breaking Capacity: 200kA AC
Package / Dimensions: Class CD
Mounting: Cartridge / Clip
Application: Contactor Protection · Heating · Industrial Control Protection · Motor
Standard: UL 248-18
Terminal Type: Ferrule
Fuse Speed: Dual Element · Time Delay
Utilization Class: Class CD
Approvals: CSA · UL Listed
Certifications: UL Listed · CSA
DC Voltage Rating: 250V DC
DC Interrupting Rating: 20kA
