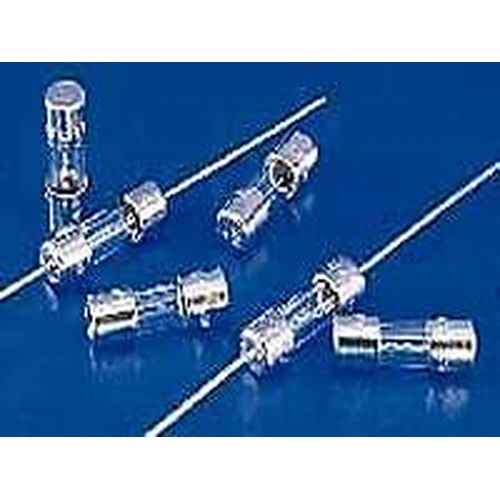

Littelfuse 0224001 1A Fast-Acting 2AG Axial Lead Fuse
● Contact for AvailabilityFor 1A circuit protection at 250V AC, Littelfuse 0224001 uses a 2AG fast-acting axial lead fuse design with 35A capability.
Rated Current1A
Rated Voltage250V AC
Breaking Capacity35A
Package2AG (4.5×15mm)
QUICK RFQ
Request a quote for 0224001
Submit directly from this product page. We will reply with availability, lead time and pricing.
Part Number0224001BrandLittelfuseRequested Qty100
Littelfuse’s 0224001 is a 1A 2AG fast-acting axial lead fuse rated for 250V AC operation. Its 35A interrupting rating and 2AG (4.5×15mm) package support pcb through-hole installations. Use cases in the catalog include appliances and power electronics. Compliance references include UL 248-14 and UL Listed, CSA, CE and RoHS.
Technical Specifications
- Part Number
- 0224001
- Manufacturer Part Number
- 0224001
- Series
- 224 Series
- Fuse Type
- 2AG Fast-Acting Axial Lead Fuse
- Current Rating
- 1A
- Voltage Rating
- 250V AC
- AC / DC
- AC
- Breaking Capacity
- 35A
- Operating Temperature
- -55°C to +125°C
- Package / Dimensions
- 2AG (4.5×15mm)
- Mounting
- PCB Through-Hole
- Application
- Appliances · Power Electronics
- Standard
- UL 248-14
- Terminal Type
- Axial Lead
- Fuse Speed
- Fast Acting (F)
- Utilization Class
- Supplemental
- Approvals
- CE · CSA · RoHS · UL Listed
- Certifications
- UL Listed · CSA · CE · RoHS
- Body
- Glass
