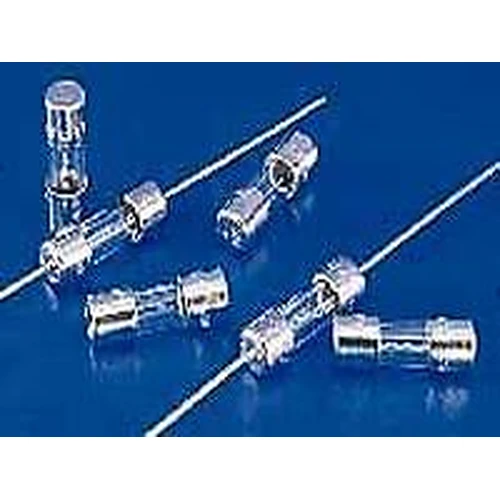

Littelfuse 0224.750 0.75A Fast-Acting 2AG Axial Lead Fuse
● Contact for AvailabilityLittelfuse 0224.750 offers fast-acting protection at 0.75A and 250V AC, with UL Listed, CSA, CE and RoHS approvals.
Rated Current0.75A
Rated Voltage250V AC
Breaking Capacity35A
Package2AG (4.5×15mm)
QUICK RFQ
Request a quote for 0224.750
Submit directly from this product page. We will reply with availability, lead time and pricing.
Part Number0224.750BrandLittelfuseRequested Qty100
The 224 Series 0224.750 is a Littelfuse 2AG fast-acting axial lead fuse for 0.75A, 250V AC protection. Its 35A interrupting rating and 2AG (4.5×15mm) package support pcb through-hole installations. Use cases in the catalog include appliances and power electronics. Compliance references include UL 248-14 and UL Listed, CSA, CE and RoHS.
Technical Specifications
- Part Number
- 0224.750
- Manufacturer Part Number
- 0224.750
- Series
- 224 Series
- Fuse Type
- 2AG Fast-Acting Axial Lead Fuse
- Current Rating
- 0.75A
- Voltage Rating
- 250V AC
- AC / DC
- AC
- Breaking Capacity
- 35A
- Operating Temperature
- -55°C to +125°C
- Package / Dimensions
- 2AG (4.5×15mm)
- Mounting
- PCB Through-Hole
- Application
- Appliances · Power Electronics
- Standard
- UL 248-14
- Terminal Type
- Axial Lead
- Fuse Speed
- Fast Acting (F)
- Utilization Class
- Supplemental
- Approvals
- CE · CSA · RoHS · UL Listed
- Certifications
- UL Listed · CSA · CE · RoHS
- Body
- Glass
