Hollyland

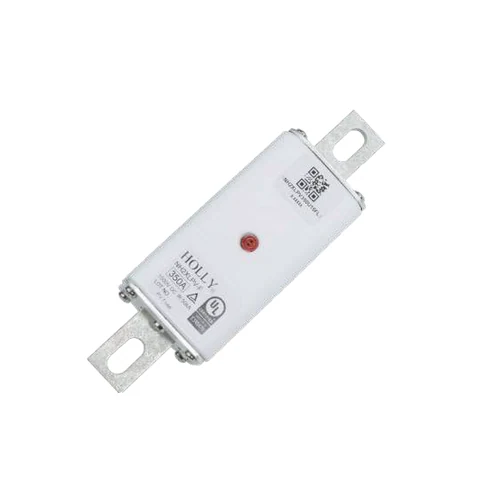

HOLLY FUSE NH2XLPV350U15FC 1500V 350A Photovoltaic Fuse

Name: HOLLY FUSE NH2XLPV350U15FC 1500V 350A Photovoltaic Fuse
Brand: Hollyland
SKU: NH2XLPV350U15FC

Part Number: NH2XLPV350U15FC

● LT: 2-4w

HOLLY FUSE NH2XLPV350U15FC is a photovoltaic fuse rated 350A, 1500V in the NH2XLPV-F series.

Rated Current350A

Rated Voltage1500V

Breaking Capacity50000A at 1500V DC

Tags

1500V DC Bolt-Down gPV Photovoltaic Fuses Very Fast Acting

HOLLY FUSE NH2XLPV350U15FC is a photovoltaic fuse in the NH2XLPV-F series, rated 350A, 1500V. Standards: IEC 60269, UL 248. Approvals: UL Listed. Interrupting/breaking capacity: 50000A at 1500V DC.

Specifications

Type: Photovoltaic Fuses
Rated current type: DC
Standards also cited: IEC 60269.6, UL 248-19
Source: powerfuse catalogue page 43

Technical Specifications

Part Number: NH2XLPV350U15FC
Manufacturer Part Number: NH2XLPV350U15FC
Series: NH2XLPV-F
Fuse Type: Photovoltaic Fuses
Current Rating: 350A
Voltage Rating: 1500V
AC / DC: DC
Breaking Capacity: 50000A at 1500V DC
Mounting: Bolt-Down
Application: Solar PV
Standard: IEC 60269 · UL 248
Terminal Type: Ferrule
Fuse Speed: Very Fast Acting
Utilization Class: gPV
Approvals: UL Listed
Certifications: UL Listed
Type: Photovoltaic Fuses; Rated current type: DC; Standards also cited: IEC 60269.6, UL 248-19; Source: powerfuse catalogue page 43
