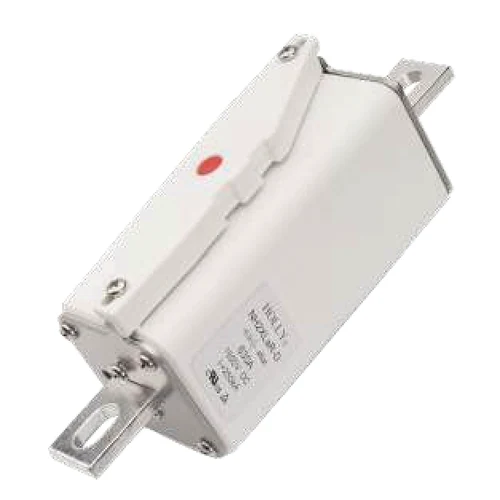

HOLLY FUSE NH2XLaRD50U15C 1500V DC 50A aR Fuse

Hollyland

HOLLY FUSE NH2XLaRD50U15C 1500V DC 50A aR Fuse

Part Number: NH2XLaRD50U15C

● Check availability

HOLLY FUSE NH2XLaRD50U15C combines a 50A current rating with 1500V DC operation for demanding protection applications. Confirmed approvals: cURus, CCC.

Rated Current50A

Rated Voltage1500V DC

Breaking Capacity250,000A at 1500V DC

Tags

1500V DC aR Bolt-Down fuse Very Fast Acting

Part NH2XLaRD50U15C is a HOLLY FUSE NH2XLaR-D-series aR semiconductor fuse with ratings of 50A, 1500V DC. Confirmed approvals: cURus, CCC. Interrupting capacity: 250,000A at 1500V DC. Standards: UL 248-13, IEC 60269-4, GB/T 13539.4. Technical data checked against catalog page 76.

Technical Specifications

Part Number: NH2XLaRD50U15C
Manufacturer Part Number: NH2XLaRD50U15C
Series: NH2XLaR-D
Fuse Type: Fuse
Current Rating: 50A
Voltage Rating: 1500V DC
AC / DC: DC
Breaking Capacity: 250,000A at 1500V DC
Mounting: Bolt-Down
Application: Power Electronics
Standard: GB/T 13539.4 · IEC 60269-4 · UL 248-13
Terminal Type: Ferrule
Fuse Speed: Very Fast Acting
Utilization Class: aR
Approvals: CCC · cURus
Certifications: cURus · CCC
Reference Lead Time: 2–4 weeks
Rated current: 50A
Rated voltage: 1500V DC
Interrupting capacity: 250,000A at 1500V DC
Class of operation: aR
Confirmed approvals: cURus, CCC
Standards: UL 248-13, IEC 60269-4, GB/T 13539.4
Source: Hollyland Powerfuse catalog, page 76
