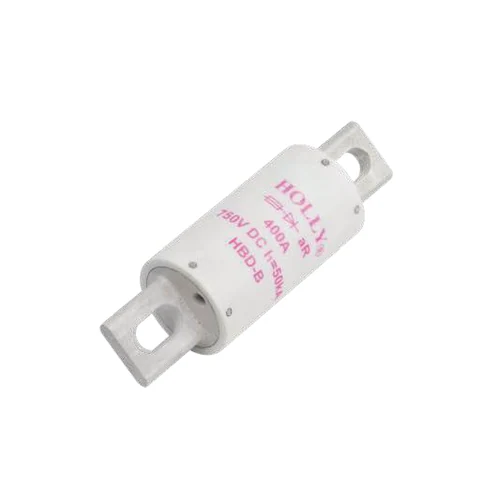

HOLLY FUSE HBD-B400 750V 400A Fuse
● Check availabilityHBD-B400 fuse from HOLLY FUSE combines a 400A current rating with a 750V voltage rating.
Rated Current400A
Rated Voltage750V
Breaking Capacity50000A at 750V DC
QUICK RFQ
Request a quote for HBD-B400
Submit directly from this product page. We will reply with availability, lead time and pricing.
Part NumberHBD-B400BrandHollylandRequested Qty100
The HOLLY FUSE HBD-B400 fuse carries 400A, 750V and belongs to the HBD-B family. Standards: IEC 60269, UL 248. Approvals: UL Listed. Interrupting/breaking capacity: 50000A at 750V DC.
Specifications
- Rating table: 50,000 amperes at 750V DC
- Rated current type: DC
- Standards also cited: GB/T13539.4, UL 248-13, IEC 60269-4
- Source: powerfuse catalogue page 20
Technical Specifications
- Part Number
- HBD-B400
- Manufacturer Part Number
- HBD-B400
- Series
- HBD-B
- Fuse Type
- Fuse
- Current Rating
- 400A
- Voltage Rating
- 750V
- AC / DC
- DC
- Breaking Capacity
- 50000A at 750V DC
- Mounting
- Bolt-Down
- Application
- Power Electronics
- Standard
- IEC 60269 · UL 248
- Terminal Type
- Ferrule
- Fuse Speed
- Very Fast Acting
- Utilization Class
- aR
- Approvals
- UL Listed
- Certifications
- UL Listed
- Rating table
- 50,000 amperes at 750V DC
- Rated current type
- DC
- Standards also cited
- GB/T13539.4, UL 248-13, IEC 60269-4
- Source
- powerfuse catalogue page 20
