What are the current and voltage ratings of H2BH315C?

H2BH315C is rated 315A at 2000V DC.

What is the breaking capacity of H2BH315C?

H2BH315C has a breaking capacity of 250,000A at 2000V DC. Confirm this covers the available fault current at the installation point.

What package size does H2BH315C use?

H2BH315C uses NH2 package size.

Which standards and approvals apply to H2BH315C?

H2BH315C is listed under GB/T 13539.4, IEC 60269-4, UL 248-13.

What is H2BH315C used for?

H2BH315C is listed for Power Electronics applications. Verify suitability for your circuit before ordering.

What are the ordering terms for H2BH315C?

H2BH315C: typical lead time 2–4 weeks. Submit a quote request for a firm quotation.

Hollyland

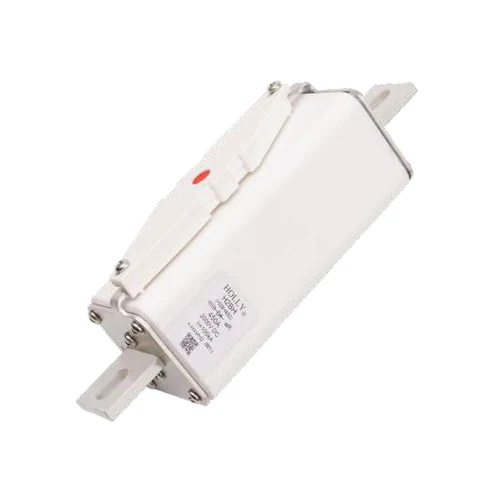

HOLLY FUSE H2BH315C 2000V DC 315A Semiconductor Fuse

Name: HOLLY FUSE H2BH315C 2000V DC 315A Semiconductor Fuse
Brand: Hollyland
SKU: H2BH315C

Part Number: H2BH315C

● Check availability

Manufacturer-verified specifications for HOLLY FUSE H2BH315C: 315A, 2000V DC. Interrupting capacity: 250,000A at 2000V DC.

Rated Current315A

Rated Voltage2000V DC

Breaking Capacity250,000A at 2000V DC

PackageNH2

Tags

HOLLY FUSE H2BH315C: semiconductor fuse, 315A, 2000V DC. The catalog specifies 250,000a at 2000v dc. Standards: IEC 60269-4, GB/T 13539.4, UL 248-13. Manufacturer source: Powerfuse catalog page 63.

Specifications

Series: H2BH
Rated current: 315A
Rated voltage: 2000V DC
Interrupting capacity: 250,000A at 2000V DC
Standards: IEC 60269-4, GB/T 13539.4, UL 248-13
Source: Hollyland Powerfuse catalog, page 63

Technical Specifications

Part Number: H2BH315C
Manufacturer Part Number: H2BH315C
Series: H2BH
Fuse Type: Semiconductor Fuses
Current Rating: 315A
Voltage Rating: 2000V DC
AC / DC: DC
Breaking Capacity: 250,000A at 2000V DC
Package / Dimensions: NH2
Mounting: Bolt-Down
Application: Power Electronics
Standard: GB/T 13539.4 · IEC 60269-4 · UL 248-13
Terminal Type: Blade
Fuse Speed: Very Fast Acting
Reference Lead Time: 2–4 weeks
Rated current: 315A
Rated voltage: 2000V DC
Interrupting capacity: 250,000A at 2000V DC
Standards: IEC 60269-4, GB/T 13539.4, UL 248-13
Source: Hollyland Powerfuse catalog, page 63
