What are the current and voltage ratings of H2BH250B?

H2BH250B is rated 250A at 2000V DC.

What is the breaking capacity of H2BH250B?

H2BH250B has a breaking capacity of 250,000A at 2000V DC. Confirm this covers the available fault current at the installation point.

What package size does H2BH250B use?

H2BH250B uses NH2 package size.

Which standards and approvals apply to H2BH250B?

H2BH250B is listed under GB/T 13539.4, IEC 60269-4, UL 248-13.

What is H2BH250B used for?

H2BH250B is listed for Power Electronics applications. Verify suitability for your circuit before ordering.

What are the ordering terms for H2BH250B?

H2BH250B: typical lead time 2–4 weeks. Submit a quote request for a firm quotation.

Hollyland

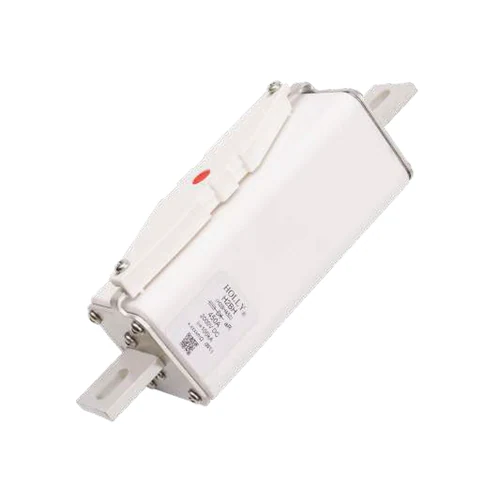

HOLLY FUSE H2BH250B 2000V DC 250A Semiconductor Fuse

Name: HOLLY FUSE H2BH250B 2000V DC 250A Semiconductor Fuse
Brand: Hollyland
SKU: H2BH250B

Part Number: H2BH250B

● Check availability

HOLLY FUSE H2BH250B combines a 250A current rating with 2000V DC operation for demanding protection applications.

Rated Current250A

Rated Voltage2000V DC

Breaking Capacity250,000A at 2000V DC

PackageNH2

Tags

Part H2BH250B is a HOLLY FUSE H2BH-series semiconductor fuse with ratings of 250A, 2000V DC. Interrupting capacity: 250,000A at 2000V DC. Standards: IEC 60269-4, GB/T 13539.4, UL 248-13. Technical data checked against catalog page 63.

Technical Specifications

Part Number: H2BH250B
Manufacturer Part Number: H2BH250B
Series: H2BH
Fuse Type: Semiconductor Fuses
Current Rating: 250A
Voltage Rating: 2000V DC
AC / DC: DC
Breaking Capacity: 250,000A at 2000V DC
Package / Dimensions: NH2
Mounting: Bolt-Down
Application: Power Electronics
Standard: GB/T 13539.4 · IEC 60269-4 · UL 248-13
Terminal Type: Blade
Fuse Speed: Very Fast Acting
Reference Lead Time: 2–4 weeks
Rated current: 250A
Rated voltage: 2000V DC
Interrupting capacity: 250,000A at 2000V DC
Standards: IEC 60269-4, GB/T 13539.4, UL 248-13
Source: Hollyland Powerfuse catalog, page 63
