What are the current and voltage ratings of H0BF400?

H0BF400 is rated 400A at 1250V AC / 1000V DC.

What is the breaking capacity of H0BF400?

H0BF400 has a breaking capacity of 100,000A at 1250V AC / 50,000A at 1000V DC. Confirm this covers the available fault current at the installation point.

Which standards and approvals apply to H0BF400?

H0BF400 is listed under GB/T 13539.4, IEC 60269-4, UL 248-13 / CCC · cURus · TUV · CE.

What is H0BF400 used for?

H0BF400 is listed for Power Electronics applications. Verify suitability for your circuit before ordering.

What are the ordering terms for H0BF400?

H0BF400: typical lead time 2–4 weeks. Submit a quote request for a firm quotation.

Hollyland

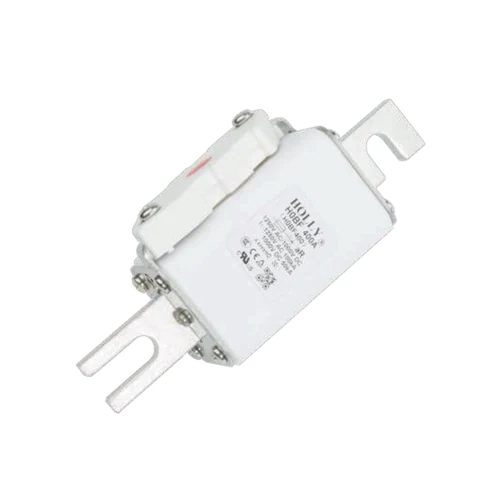

HOLLY FUSE H0BF400 1250V AC / 1000V DC 400A aR Fuse

Name: HOLLY FUSE H0BF400 1250V AC / 1000V DC 400A aR Fuse
Brand: Hollyland
SKU: H0BF400

Part Number: H0BF400

● Check availability

HOLLY FUSE H0BF400 combines a 400A current rating with 1250V AC / 1000V DC operation for demanding protection applications. Confirmed approvals: CCC, cURus, TUV, CE.

Rated Current400A

Rated Voltage1250V AC / 1000V DC

Breaking Capacity100,000A at 1250V AC / 50,000A at 1000V DC

PackageNH0

Tags

aR Bolt-Down fuse NH0 Very Fast Acting

Part H0BF400 is a HOLLY FUSE H0BF-series aR semiconductor fuse with ratings of 400A, 1250V AC / 1000V DC. Confirmed approvals: CCC, cURus, TUV, CE. Interrupting capacity: 100,000A at 1250V AC / 50,000A at 1000V DC. Standards: IEC 60269-4, GB/T 13539.4, UL 248-13. Technical data checked against catalog page 60.
