What are the current and voltage ratings of H000TD125B?

H000TD125B is rated 125A at 690V AC.

What is the breaking capacity of H000TD125B?

H000TD125B has a breaking capacity of 100,000A at 690V AC. Confirm this covers the available fault current at the installation point.

What package size does H000TD125B use?

H000TD125B uses NH000 package size.

Which standards and approvals apply to H000TD125B?

H000TD125B is listed under GB/T 13539.4 / CCC.

What is H000TD125B used for?

H000TD125B is listed for Power Electronics applications. Verify suitability for your circuit before ordering.

What are the ordering terms for H000TD125B?

H000TD125B: typical lead time 2–4 weeks. Submit a quote request for a firm quotation.

Hollyland

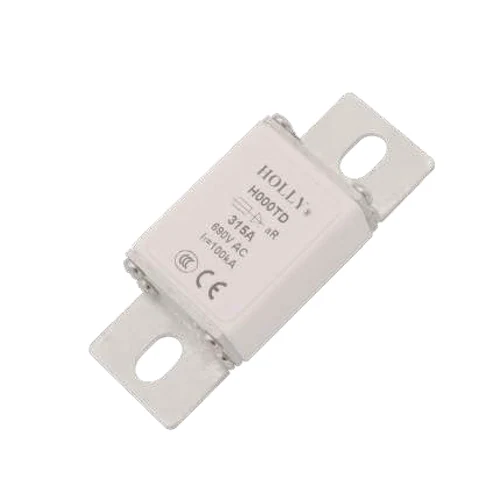

HOLLY FUSE H000TD125B 690V AC 125A aR Fuse

Name: HOLLY FUSE H000TD125B 690V AC 125A aR Fuse
Brand: Hollyland
SKU: H000TD125B

Part Number: H000TD125B

● Check availability

HOLLY FUSE H000TD125B is a semiconductor fuse rated 125A, 690V AC, designed for high-current circuit protection. Confirmed approvals: CCC.

Rated Current125A

Rated Voltage690V AC

Breaking Capacity100,000A at 690V AC

PackageNH000

Tags

690V AC aR Bolt-Down fuse NH000 Very Fast Acting

HOLLY FUSE H000TD125B is a semiconductor fuse in the H000TD/H000TD-T series. Rated 125A, 690V AC. Interrupting capacity: 100,000A at 690V AC. Standards: GB/T 13539.4. Confirmed approvals: CCC. Source: Hollyland Powerfuse catalog, page 84.

Technical Specifications

Part Number: H000TD125B
Manufacturer Part Number: H000TD125B
Series: H000TD/H000TD-T
Fuse Type: Fuse
Current Rating: 125A
Voltage Rating: 690V AC
AC / DC: AC
Breaking Capacity: 100,000A at 690V AC
Package / Dimensions: NH000
Mounting: Bolt-Down
Application: Power Electronics
Standard: GB/T 13539.4
Terminal Type: Blade
Fuse Speed: Very Fast Acting
Utilization Class: aR
Approvals: CCC
Certifications: CCC
Reference Lead Time: 2–4 weeks
Rated current: 125A
Rated voltage: 690V AC
Interrupting capacity: 100,000A at 690V AC
Class of operation: aR
Confirmed approvals: CCC
Standards: GB/T 13539.4
Source: Hollyland Powerfuse catalog, page 84
