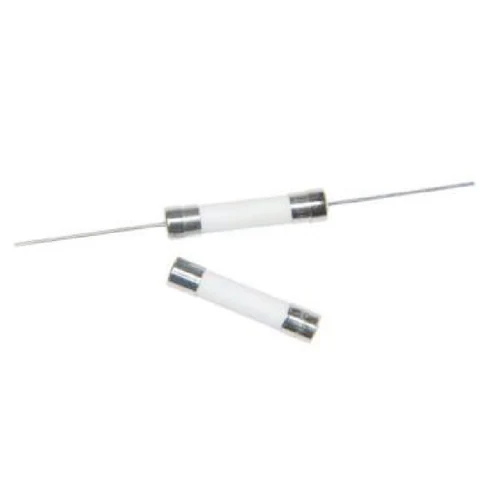

HOLLY FUSE 6FF-125H2 500V AC 12.5A Very Fast-Acting Ceramic Fuse
● Check availabilityManufacturer-checked specifications for HOLLY FUSE 6FF-125H2: 12.5A, 500V AC. Interrupting capacity: 10,000A at 500V AC.
Rated Current12.5A
Rated Voltage500V AC
Breaking Capacity10,000A at 500V AC
Package6.35×32mm
QUICK RFQ
Request a quote for 6FF-125H2
Submit directly from this product page. We will reply with availability, lead time and pricing.
Part Number6FF-125H2BrandHollylandRequested Qty100
HOLLY FUSE 6FF-125H2: very fast-acting ceramic fuse, 12.5A, 500V AC. Interrupting capacity: 10,000A at 500V AC. Standards: IEC 60127. Manufacturer source: Current Fuse catalogue p49.
Specifications
- Series: 6FF
- Rated current: 12.5A
- Rated voltage: 500V AC
- Fuse characteristic: Very Fast-Acting
- Fuse construction: Ceramic Tube Fuse
- Interrupting capacity: 10,000A at 500V AC
- Standards: IEC 60127
- Manufacturer approval note: UR/cUR and TÜV are listed by suffix/rating
- suffix availability is family-specific.
- Source: Hollyland Current Fuse catalogue, printed page 49
Technical Specifications
- Part Number
- 6FF-125H2
- Manufacturer Part Number
- 6FF-125H2
- Series
- 6FF
- Fuse Type
- Ceramic Tube Fuse
- Current Rating
- 12.5A
- Voltage Rating
- 500V AC
- AC / DC
- AC
- Breaking Capacity
- 10,000A at 500V AC
- I²t
- 38.63 A²s
- Operating Temperature
- -55°C to +125°C
- Package / Dimensions
- 6.35×32mm
- Mounting
- Cartridge / Clip
- Application
- Electronic Circuit Protection
- Standard
- IEC 60127
- Terminal Type
- Ferrule
- Fuse Speed
- Very Fast Acting
- Reference Lead Time
- 2–4 weeks
- Rated current
- 12.5A
- Rated voltage
- 500V AC
- Fuse characteristic
- Very Fast-Acting
- Fuse construction
- Ceramic Tube Fuse
- Interrupting capacity
- 10,000A at 500V AC
- Standards
- IEC 60127
- Manufacturer approval note
- UR/cUR and TÜV are listed by suffix/rating; suffix availability is family-specific.
- Source
- Hollyland Current Fuse catalogue, printed page 49
