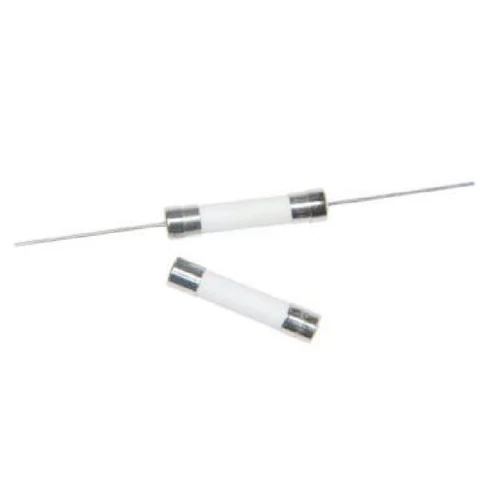

HOLLY FUSE 6FF-1-0500H5 500V DC 500mA Very Fast-Acting Ceramic Fuse
Hollyland

HOLLY FUSE 6FF-1-0500H5 500V DC 500mA Very Fast-Acting Ceramic Fuse

Part Number: 6FF-1-0500H5

● Check availability

HOLLY FUSE 6FF-1-0500H5 is a very fast-acting ceramic fuse in the 6FF-1 family, specified at 500mA, 500V DC.

Rated Current500mA
Rated Voltage500V DC
Breaking Capacity10,000A at 500V DC
Package6.35×32mm
Tags
Share

HOLLY FUSE 6FF-1-0500H5 is a very fast-acting ceramic fuse in the 6FF-1 series, specified at 500mA, 500V DC. Interrupting capacity: 10,000A at 500V DC. Standards: IEC 60127. Source: Hollyland Current Fuse catalogue p49.

Technical Specifications

Part Number
6FF-1-0500H5
Manufacturer Part Number
6FF-1-0500H5
Series
6FF-1
Fuse Type
Ceramic Tube Fuse
Current Rating
500mA
Voltage Rating
500V DC
AC / DC
DC
Breaking Capacity
10,000A at 500V DC
I²t
0.0342 A²s
Operating Temperature
-55°C to +125°C
Package / Dimensions
6.35×32mm
Mounting
Cartridge / Clip
Application
Electronic Circuit Protection
Standard
IEC 60127
Terminal Type
Ferrule
Fuse Speed
Very Fast Acting
Reference Lead Time
2–4 weeks
Rated current
500mA
Rated voltage
500V DC
Fuse characteristic
Very Fast-Acting
Fuse construction
Ceramic Tube Fuse
Interrupting capacity
10,000A at 500V DC
Standards
IEC 60127
Manufacturer approval note
UR/cUR and TÜV are listed by suffix/rating; 6FF-1 low-current suffixes are H2/H3/H5.
Source
Hollyland Current Fuse catalogue, printed page 49
