Hollyland

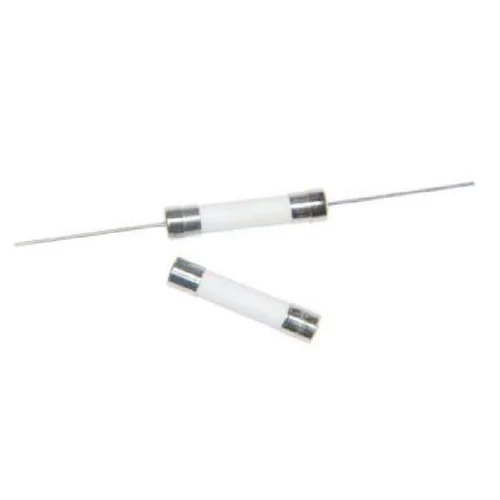

HOLLY FUSE 6FF-070H2 500V AC 7A Very Fast-Acting Ceramic Fuse

Name: HOLLY FUSE 6FF-070H2 500V AC 7A Very Fast-Acting Ceramic Fuse
Brand: Hollyland
SKU: 6FF-070H2

Part Number: 6FF-070H2

● Check availability

HOLLY FUSE 6FF-070H2 combines its rated protection value with 500V AC operation in the 6FF product family.

Rated Current7A

Rated Voltage500V AC

Breaking Capacity10,000A at 500V AC

Package6.35×32mm

Tags

500V AC 6.35×32mm 6FF Ceramic Tube Fuse Very Fast Acting

Part 6FF-070H2 is a HOLLY FUSE 6FF-series very fast-acting ceramic fuse with specifications of 7A, 500V AC. Interrupting capacity: 10,000A at 500V AC. Standards: IEC 60127. Technical data checked against catalogue p49.

Technical Specifications

Part Number: 6FF-070H2
Manufacturer Part Number: 6FF-070H2
Series: 6FF
Fuse Type: Ceramic Tube Fuse
Current Rating: 7A
Voltage Rating: 500V AC
AC / DC: AC
Breaking Capacity: 10,000A at 500V AC
I²t: 11.48 A²s
Operating Temperature: -55°C to +125°C
Package / Dimensions: 6.35×32mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: IEC 60127
Terminal Type: Ferrule
Fuse Speed: Very Fast Acting
Reference Lead Time: 2–4 weeks
Rated current: 7A
Rated voltage: 500V AC
Fuse characteristic: Very Fast-Acting
Fuse construction: Ceramic Tube Fuse
Interrupting capacity: 10,000A at 500V AC
Standards: IEC 60127
Manufacturer approval note: UR/cUR and TÜV are listed by suffix/rating; suffix availability is family-specific.
Source: Hollyland Current Fuse catalogue, printed page 49
