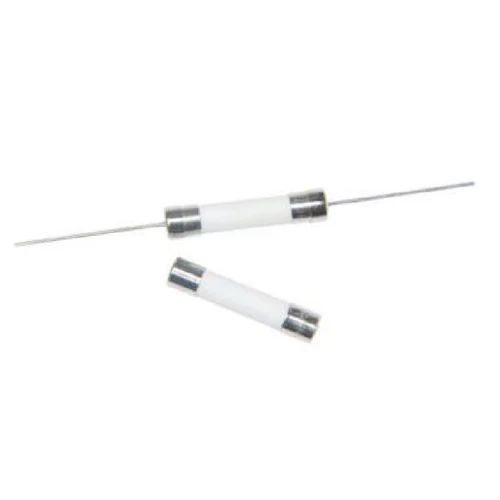

HOLLY FUSE 6FF-030H3 600V AC 3A Very Fast-Acting Ceramic Fuse

Name: HOLLY FUSE 6FF-030H3 600V AC 3A Very Fast-Acting Ceramic Fuse
Brand: Hollyland
SKU: 6FF-030H3

Part Number: 6FF-030H3

● Check availability

6FF-030H3 is part of the HOLLY FUSE 6FF range, specified at 3A, 600V AC.

Rated Current3A

Rated Voltage600V AC

Breaking Capacity10,000A at 600V AC

Package6.35×32mm

Tags

6.35×32mm 600V AC 6FF Ceramic Tube Fuse Very Fast Acting

Designed for circuit protection, HOLLY FUSE 6FF-030H3 is specified at 3A, 600V AC within the 6FF series. Interrupting capacity: 10,000A at 600V AC. Standards: IEC 60127. Source: Hollyland Current Fuse catalogue p49.

Technical Specifications

Part Number: 6FF-030H3
Manufacturer Part Number: 6FF-030H3
Series: 6FF
Fuse Type: Ceramic Tube Fuse
Current Rating: 3A
Voltage Rating: 600V AC
AC / DC: AC
Breaking Capacity: 10,000A at 600V AC
I²t: 1.95 A²s
Operating Temperature: -55°C to +125°C
Package / Dimensions: 6.35×32mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: IEC 60127
Terminal Type: Ferrule
Fuse Speed: Very Fast Acting
Reference Lead Time: 2–4 weeks
Rated current: 3A
Rated voltage: 600V AC
Fuse characteristic: Very Fast-Acting
Fuse construction: Ceramic Tube Fuse
Interrupting capacity: 10,000A at 600V AC
Standards: IEC 60127
Manufacturer approval note: UR/cUR and TÜV are listed by suffix/rating; suffix availability is family-specific.
Source: Hollyland Current Fuse catalogue, printed page 49
