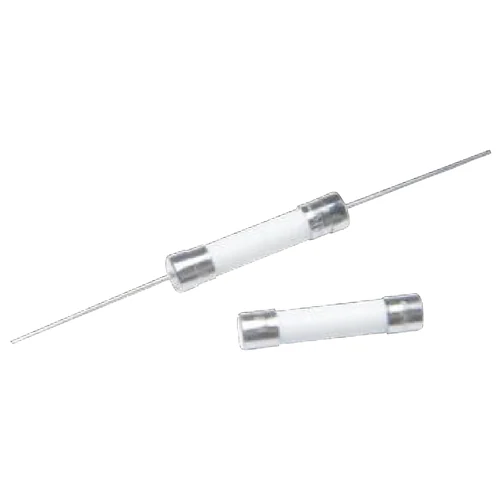

HOLLY FUSE 65TS-150H 250V AC 15A Slow-Blow Ceramic Fuse

Name: HOLLY FUSE 65TS-150H 250V AC 15A Slow-Blow Ceramic Fuse
Brand: Hollyland
SKU: 65TS-150H

Part Number: 65TS-150H

● Check availability

HOLLY FUSE 65TS-150H combines its rated protection value with 250V AC operation in the 65TS product family.

Rated Current15A

Rated Voltage250V AC

Breaking Capacity750A at 250V AC

Package6.35×32mm

Tags

250V AC 6.35×32mm 65TS Ceramic Tube Fuse Slow-Blow

Part 65TS-150H is a HOLLY FUSE 65TS-series slow-blow ceramic fuse with specifications of 15A, 250V AC. Interrupting capacity: 750A at 250V AC. Standards: UL 248-1, UL 248-14. Technical data checked against catalogue p46.

Technical Specifications

Part Number: 65TS-150H
Manufacturer Part Number: 65TS-150H
Series: 65TS
Fuse Type: Ceramic Tube Fuse
Current Rating: 15A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 750A at 250V AC
I²t: 720.1 A²s
Operating Temperature: -55°C to +125°C
Package / Dimensions: 6.35×32mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Ferrule
Fuse Speed: Time Delay
Reference Lead Time: 2–4 weeks
Rated current: 15A
Rated voltage: 250V AC
Fuse characteristic: Slow-Blow
Fuse construction: Ceramic Tube Fuse
Interrupting capacity: 750A at 250V AC
Standards: UL 248-1, UL 248-14
Manufacturer approval note: UL/cUL, UR/cUR, PSE, KC, TÜV and CQC are listed; exact approvals vary by suffix/current.
Source: Hollyland Current Fuse catalogue, printed page 46
