Hollyland

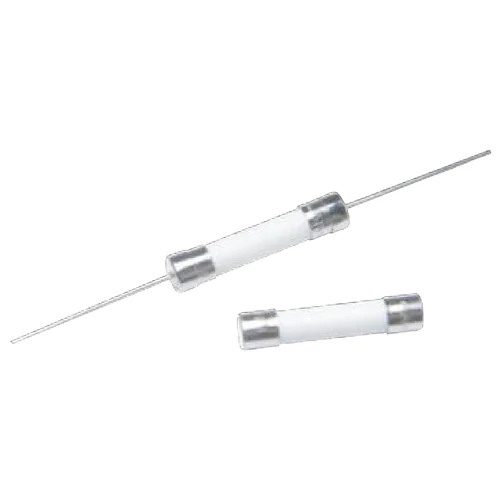

HOLLY FUSE 65TS-032H 250V AC 3.15A Slow-Blow Ceramic Fuse

Name: HOLLY FUSE 65TS-032H 250V AC 3.15A Slow-Blow Ceramic Fuse
Brand: Hollyland
SKU: 65TS-032H

Part Number: 65TS-032H

● Check availability

65TS-032H is part of the HOLLY FUSE 65TS range, specified at 3.15A, 250V AC.

Rated Current3.15A

Rated Voltage250V AC

Breaking Capacity100A at 250V AC

Package6.35×32mm

Tags

250V AC 6.35×32mm 65TS Ceramic Tube Fuse Slow-Blow

Designed for circuit protection, HOLLY FUSE 65TS-032H is specified at 3.15A, 250V AC within the 65TS series. Interrupting capacity: 100A at 250V AC. Standards: UL 248-1, UL 248-14. Source: Hollyland Current Fuse catalogue p46.

Technical Specifications

Part Number: 65TS-032H
Manufacturer Part Number: 65TS-032H
Series: 65TS
Fuse Type: Ceramic Tube Fuse
Current Rating: 3.15A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 100A at 250V AC
I²t: 5.246 A²s
Operating Temperature: -55°C to +125°C
Package / Dimensions: 6.35×32mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Ferrule
Fuse Speed: Time Delay
Reference Lead Time: 2–4 weeks
Rated current: 3.15A
Rated voltage: 250V AC
Fuse characteristic: Slow-Blow
Fuse construction: Ceramic Tube Fuse
Interrupting capacity: 100A at 250V AC
Standards: UL 248-1, UL 248-14
Manufacturer approval note: UL/cUL, UR/cUR, PSE, KC, TÜV and CQC are listed; exact approvals vary by suffix/current.
Source: Hollyland Current Fuse catalogue, printed page 46
