Hollyland

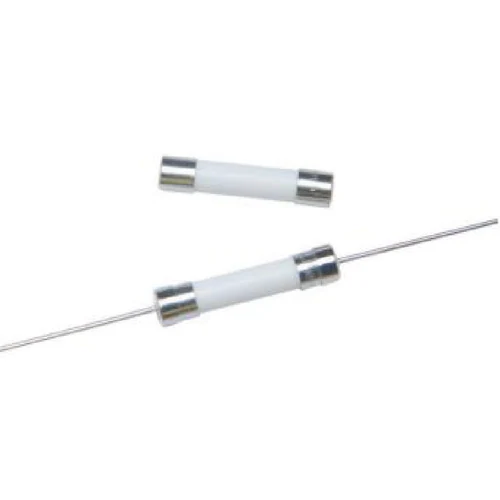

HOLLY FUSE 65NM-040L 125V AC 4A Fast-Blow Ceramic Fuse

Name: HOLLY FUSE 65NM-040L 125V AC 4A Fast-Blow Ceramic Fuse
Brand: Hollyland
SKU: 65NM-040L

Part Number: 65NM-040L

● Check availability

HOLLY FUSE 65NM-040L is a fast-blow ceramic fuse in the 65NM family, specified at 4A, 125V AC.

Rated Current4A

Rated Voltage125V AC

Breaking Capacity10,000A at 125V AC

Package6.35×32mm

Tags

125V AC 6.35×32mm 65NM Ceramic Tube Fuse Fast-Blow

HOLLY FUSE 65NM-040L is a fast-blow ceramic fuse in the 65NM series, specified at 4A, 125V AC. Interrupting capacity: 10,000A at 125V AC. Standards: UL 248-1, UL 248-14. Source: Hollyland Current Fuse catalogue p45.

Technical Specifications

Part Number: 65NM-040L
Manufacturer Part Number: 65NM-040L
Series: 65NM
Fuse Type: Ceramic Tube Fuse
Current Rating: 4A
Voltage Rating: 125V AC
AC / DC: AC
Breaking Capacity: 10,000A at 125V AC
I²t: 12.78 A²s
Operating Temperature: -55°C to +125°C
Package / Dimensions: 6.35×32mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Ferrule
Fuse Speed: Fast Acting
Reference Lead Time: 2–4 weeks
Rated current: 4A
Rated voltage: 125V AC
Fuse characteristic: Fast-Blow
Fuse construction: Ceramic Tube Fuse
Interrupting capacity: 10,000A at 125V AC
Standards: UL 248-1, UL 248-14
Manufacturer approval note: UL/cUL, UR/cUR, PSE and KC are listed; exact approvals vary by suffix/current.
Source: Hollyland Current Fuse catalogue, printed page 45
