Hollyland

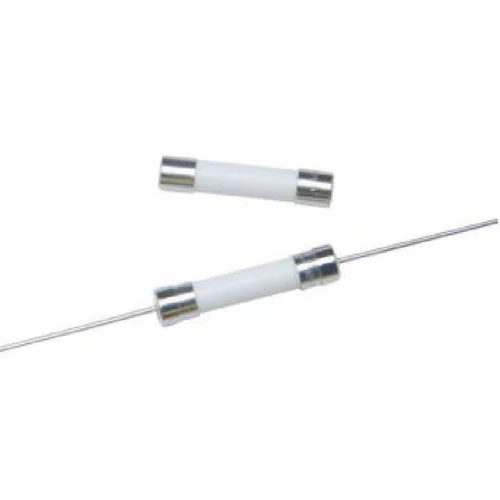

HOLLY FUSE 65NM-035L 125V AC 3.5A Fast-Blow Ceramic Fuse

Name: HOLLY FUSE 65NM-035L 125V AC 3.5A Fast-Blow Ceramic Fuse
Brand: Hollyland
SKU: 65NM-035L

Part Number: 65NM-035L

● Check availability

HOLLY FUSE 65NM-035L combines its rated protection value with 125V AC operation in the 65NM product family.

Rated Current3.5A

Rated Voltage125V AC

Breaking Capacity10,000A at 125V AC

Package6.35×32mm

Tags

125V AC 6.35×32mm 65NM Ceramic Tube Fuse Fast-Blow

Part 65NM-035L is a HOLLY FUSE 65NM-series fast-blow ceramic fuse with specifications of 3.5A, 125V AC. Interrupting capacity: 10,000A at 125V AC. Standards: UL 248-1, UL 248-14. Technical data checked against catalogue p45.

Technical Specifications

Part Number: 65NM-035L
Manufacturer Part Number: 65NM-035L
Series: 65NM
Fuse Type: Ceramic Tube Fuse
Current Rating: 3.5A
Voltage Rating: 125V AC
AC / DC: AC
Breaking Capacity: 10,000A at 125V AC
I²t: 8.111 A²s
Operating Temperature: -55°C to +125°C
Package / Dimensions: 6.35×32mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Ferrule
Fuse Speed: Fast Acting
Reference Lead Time: 2–4 weeks
Rated current: 3.5A
Rated voltage: 125V AC
Fuse characteristic: Fast-Blow
Fuse construction: Ceramic Tube Fuse
Interrupting capacity: 10,000A at 125V AC
Standards: UL 248-1, UL 248-14
Manufacturer approval note: UL/cUL, UR/cUR, PSE and KC are listed; exact approvals vary by suffix/current.
Source: Hollyland Current Fuse catalogue, printed page 45
