Hollyland

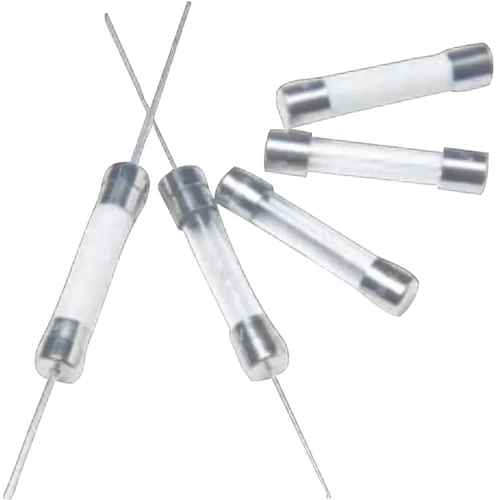

HOLLY FUSE 61T-125H 250V AC 12.5A Time-Lag Ceramic Fuse

Name: HOLLY FUSE 61T-125H 250V AC 12.5A Time-Lag Ceramic Fuse
Brand: Hollyland
SKU: 61T-125H

Part Number: 61T-125H

● Check availability

HOLLY FUSE 61T-125H is a time-lag ceramic fuse in the 61T family, specified at 12.5A, 250V AC. Confirmed approvals: CQC.

Rated Current12.5A

Rated Voltage250V AC

Breaking Capacity125A at 250V AC (10×In)

Package6.35×32mm

Tags

250V AC 6.35×32mm 61T Ceramic Tube Fuse Time-Lag

HOLLY FUSE 61T-125H is a time-lag ceramic fuse in the 61T series, specified at 12.5A, 250V AC. Interrupting capacity: 125A at 250V AC (10×In). Standards: GB 9364, IEC 60127. Confirmed approvals: CQC. Source: Hollyland Current Fuse catalogue p48.

Technical Specifications

Part Number: 61T-125H
Manufacturer Part Number: 61T-125H
Series: 61T
Fuse Type: Ceramic Tube Fuse
Current Rating: 12.5A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 125A at 250V AC (10×In)
I²t: 1428 A²s
Operating Temperature: -55°C to +125°C
Package / Dimensions: 6.35×32mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: GB 9364 · IEC 60127
Terminal Type: Ferrule
Fuse Speed: Time Delay
Approvals: CQC
Certifications: CQC
Reference Lead Time: 2–4 weeks
Rated current: 12.5A
Rated voltage: 250V AC
Fuse characteristic: Time-Lag
Fuse construction: Ceramic Tube Fuse
Interrupting capacity: 125A at 250V AC (10×In)
Standards: GB 9364, IEC 60127
Confirmed approvals used in structured fields: CQC
Manufacturer approval note: CQC is shown for selected ratings (8A, 10A, 12.5A and 16A in the current catalogue table).
Source: Hollyland Current Fuse catalogue, printed page 48
