Hollyland

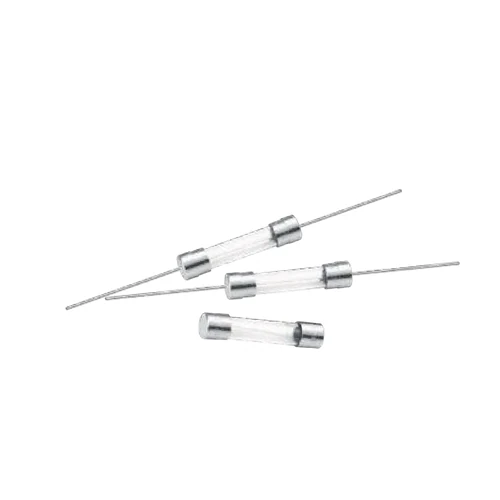

HOLLY FUSE 61NM-012H 250V AC 1.2A Fast-Blow Tube Fuse

Name: HOLLY FUSE 61NM-012H 250V AC 1.2A Fast-Blow Tube Fuse
Brand: Hollyland
SKU: 61NM-012H

Part Number: 61NM-012H

● Check availability

HOLLY FUSE 61NM-012H is a fast-blow tube fuse in the 61NM family, specified at 1.2A, 250V AC.

Rated Current1.2A

Rated Voltage250V AC

Breaking Capacity100A at 250V AC

Package6.35×32mm

Tags

250V AC 6.35×32mm 61NM Fast-Blow Glass/Ceramic Tube Fuse

HOLLY FUSE 61NM-012H is a fast-blow tube fuse in the 61NM series, specified at 1.2A, 250V AC. Interrupting capacity: 100A at 250V AC. Standards: UL 248-1, UL 248-14. Source: Hollyland Current Fuse catalogue p43.

Technical Specifications

Part Number: 61NM-012H
Manufacturer Part Number: 61NM-012H
Series: 61NM
Fuse Type: Glass/Ceramic Tube Fuse
Current Rating: 1.2A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 100A at 250V AC
I²t: 1.751 A²s
Operating Temperature: -55°C to +125°C
Package / Dimensions: 6.35×32mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Ferrule
Fuse Speed: Fast Acting
Reference Lead Time: 2–4 weeks
Rated current: 1.2A
Rated voltage: 250V AC
Fuse characteristic: Fast-Blow
Fuse construction: Glass/Ceramic Tube Fuse
Interrupting capacity: 100A at 250V AC
Standards: UL 248-1, UL 248-14
Manufacturer approval note: UL/cUL, CSA, PSE, KC and UR/cUR appear by variant; exact approvals vary by current and voltage option.
Source: Hollyland Current Fuse catalogue, printed page 43
