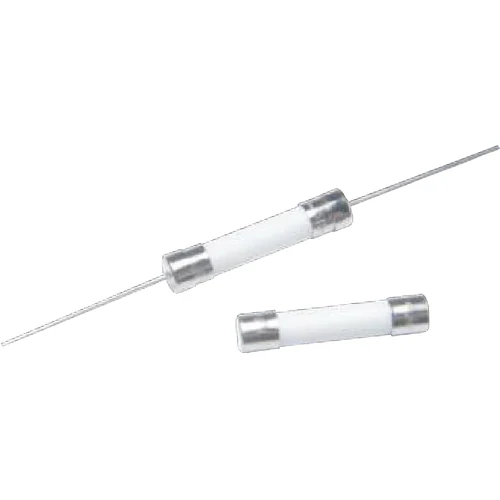

HOLLY FUSE 61CT-200H 500V AC 20A Time-Lag Ceramic Fuse

Hollyland

HOLLY FUSE 61CT-200H 500V AC 20A Time-Lag Ceramic Fuse

Part Number: 61CT-200H

● Check availability

61CT-200H from HOLLY FUSE provides 20A, 500V AC protection for electronic and electrical equipment. Confirmed approvals: UR, cUR.

Rated Current20A

Rated Voltage500V AC

Breaking Capacity500A at 500V AC

Package6.35×32mm

Tags

500V AC 6.35×32mm 61CT Ceramic Tube Fuse Time-Lag

For applications requiring 20A, 500V AC, HOLLY FUSE 61CT-200H provides the manufacturer-specified characteristics of the 61CT family. Interrupting capacity: 500A at 500V AC. Standards: GB 9364, IEC 60127. Confirmed approvals: UR, cUR. Verified against catalogue p47.

Technical Specifications

Part Number: 61CT-200H
Manufacturer Part Number: 61CT-200H
Series: 61CT
Fuse Type: Ceramic Tube Fuse
Current Rating: 20A
Voltage Rating: 500V AC
AC / DC: AC
Breaking Capacity: 500A at 500V AC
I²t: 2281 A²s
Operating Temperature: -55°C to +125°C
Package / Dimensions: 6.35×32mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: GB 9364 · IEC 60127
Terminal Type: Ferrule
Fuse Speed: Time Delay
Approvals: cURus · UR
Certifications: UR · cUR
Reference Lead Time: 2–4 weeks
Rated current: 20A
Rated voltage: 500V AC
Fuse characteristic: Time-Lag
Fuse construction: Ceramic Tube Fuse
Interrupting capacity: 500A at 500V AC
Standards: GB 9364, IEC 60127
Confirmed approvals used in structured fields: UR, cUR
Manufacturer approval note: UR/cUR is shown for the listed 2A-30A range.
Source: Hollyland Current Fuse catalogue, printed page 47
