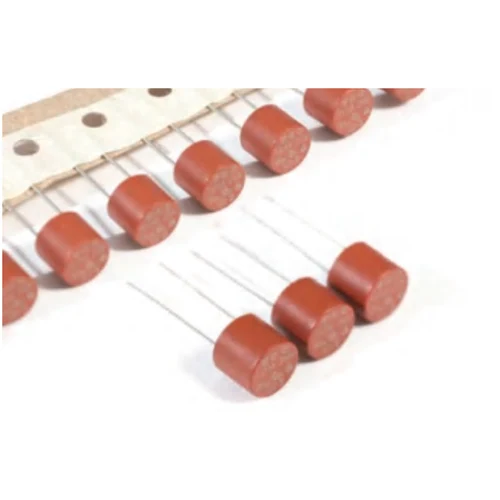

HOLLY FUSE 5RT-0250H 250V AC 250mA Radial Lead Microfuse

Name: HOLLY FUSE 5RT-0250H 250V AC 250mA Radial Lead Microfuse
Brand: Hollyland
SKU: 5RT-0250H

Part Number: 5RT-0250H

● Check availability

Catalog-verified HOLLY FUSE 5RT-0250H: 250mA, 250V AC, time-lag, 5RT series.

Rated Current250mA

Rated Voltage250V AC

Breaking CapacityApproval-dependent; see manufacturer table

Package8×8.5×4mm

Tags

250V AC 5RT 8×8.5×4mm Radial Lead Microfuse Time-Lag

HOLLY FUSE 5RT-0250H is a radial lead microfuse in the 5RT range, rated 250mA at 250V AC; data checked against Hollyland Current Fuse p17.

Series: 5RT
Rated current: 250mA
Rated voltage: 250V AC
Fuse characteristic: Time-Lag
Standards: IEC 60127, GB 9364
Interrupting capacity: Approval-dependent
see manufacturer table
Manufacturer-listed approval authorities: CCC, SEMKO, VDE, cURus, BSI, PSE, KC. Availability varies by rating/voltage
verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p17

Technical Specifications

Part Number: 5RT-0250H
Manufacturer Part Number: 5RT-0250H
Series: 5RT
Fuse Type: Radial Lead Microfuse
Current Rating: 250mA
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: Approval-dependent; see manufacturer table
I²t: 0.203 A²s
Pre-arcing I²t: 0.203
Total I²t: 0.203
Operating Temperature: -55°C to +125°C
Package / Dimensions: 8×8.5×4mm
Mounting: PCB Through-Hole
Application: Electronic Circuit Protection
Standard: GB 9364 · IEC 60127
Terminal Type: Radial Lead
Fuse Speed: Time Delay
Rated current: 250mA
Rated voltage: 250V AC
Fuse characteristic: Time-Lag
Standards: IEC 60127, GB 9364
Interrupting capacity: Approval-dependent; see manufacturer table
Manufacturer-listed approval authorities: CCC, SEMKO, VDE, cURus, BSI, PSE, KC. Availability varies by rating/voltage; verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p17
