Hollyland

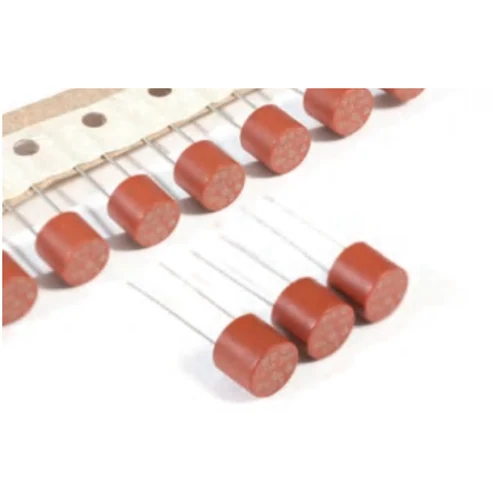

HOLLY FUSE 5RT-0200H1 300V AC 200mA Radial Lead Microfuse

Name: HOLLY FUSE 5RT-0200H1 300V AC 200mA Radial Lead Microfuse
Brand: Hollyland
SKU: 5RT-0200H1

Part Number: 5RT-0200H1

● Check availability

HOLLY FUSE 5RT part 5RT-0200H1 combines a 200mA current rating with 300V AC operation.

Rated Current200mA

Rated Voltage300V AC

Breaking CapacityApproval-dependent; see manufacturer table

Package8×8.5×4mm

Tags

300V AC 5RT 8×8.5×4mm Radial Lead Microfuse Time-Lag

Part 5RT-0200H1 is a 5RT-series radial lead microfuse for electronic circuit protection, rated 200mA at 300V AC. Applicable standards: IEC 60127, GB 9364.

Specifications

Series: 5RT
Rated current: 200mA
Rated voltage: 300V AC
Fuse characteristic: Time-Lag
Standards: IEC 60127, GB 9364
Interrupting capacity: Approval-dependent
see manufacturer table
Manufacturer-listed approval authorities: CCC, SEMKO, VDE, cURus, BSI, PSE, KC. Availability varies by rating/voltage
verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p17

Technical Specifications

Part Number: 5RT-0200H1
Manufacturer Part Number: 5RT-0200H1
Series: 5RT
Fuse Type: Radial Lead Microfuse
Current Rating: 200mA
Voltage Rating: 300V AC
AC / DC: AC
Breaking Capacity: Approval-dependent; see manufacturer table
I²t: 0.1181 A²s
Pre-arcing I²t: 0.1181
Total I²t: 0.1181
Operating Temperature: -55°C to +125°C
Package / Dimensions: 8×8.5×4mm
Mounting: PCB Through-Hole
Application: Electronic Circuit Protection
Standard: GB 9364 · IEC 60127
Terminal Type: Radial Lead
Fuse Speed: Time Delay
Rated current: 200mA
Rated voltage: 300V AC
Fuse characteristic: Time-Lag
Standards: IEC 60127, GB 9364
Interrupting capacity: Approval-dependent; see manufacturer table
Manufacturer-listed approval authorities: CCC, SEMKO, VDE, cURus, BSI, PSE, KC. Availability varies by rating/voltage; verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p17
