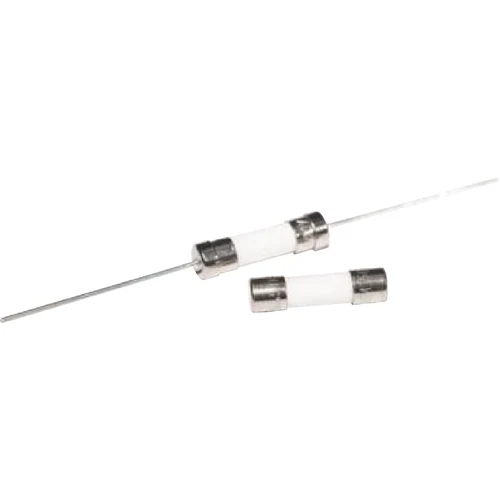

HOLLY FUSE 5HT-120H 500V AC 12A Time-Lag Ceramic Fuse

Name: HOLLY FUSE 5HT-120H 500V AC 12A Time-Lag Ceramic Fuse
Brand: Hollyland
SKU: 5HT-120H

Part Number: 5HT-120H

● Check availability

Verified HOLLY FUSE 5HT-120H data includes 12A, 500V AC and its catalogue-defined protection characteristic. Confirmed approvals: cURus, TÜV.

Rated Current12A

Rated Voltage500V AC

Breaking Capacity200A at 500V AC

Package5.2×20mm

Tags

5.2×20mm 500V AC 5HT Ceramic Tube Fuse Time-Lag

HOLLY FUSE 5HT-120H belongs to the 5HT product family. Key verified data: 12A, 500V AC. Interrupting capacity: 200A at 500V AC. Standards: IEC 60127, GB 9364. Confirmed approvals: cURus, TÜV. Reference: manufacturer catalogue p40.

Technical Specifications

Part Number: 5HT-120H
Manufacturer Part Number: 5HT-120H
Series: 5HT
Fuse Type: Ceramic Tube Fuse
Current Rating: 12A
Voltage Rating: 500V AC
AC / DC: AC
Breaking Capacity: 200A at 500V AC
I²t: 234.1 A²s
Operating Temperature: -55°C to +125°C
Package / Dimensions: 5.2×20mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: GB 9364 · IEC 60127
Terminal Type: Ferrule
Fuse Speed: Time Delay
Approvals: cURus · TUV
Certifications: cURus · TÜV
Reference Lead Time: 2–4 weeks
Rated current: 12A
Rated voltage: 500V AC
Fuse characteristic: Time-Lag
Fuse construction: Ceramic Tube Fuse
Interrupting capacity: 200A at 500V AC
Standards: IEC 60127, GB 9364
Confirmed approvals used in structured fields: cURus, TÜV
Manufacturer approval note: cURus and TÜV are approved through 16A; 20A and 25A are marked pending.
Source: Hollyland Current Fuse catalogue, printed page 40
