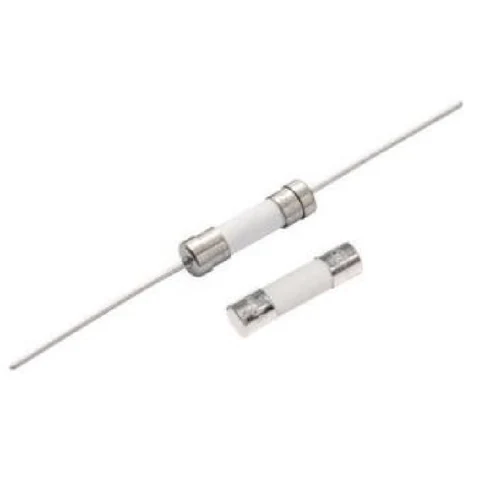

HOLLY FUSE 5HF-020H 500V AC 2A Quick-Acting Ceramic Fuse

Name: HOLLY FUSE 5HF-020H 500V AC 2A Quick-Acting Ceramic Fuse
Brand: Hollyland
SKU: 5HF-020H

Part Number: 5HF-020H

● Check availability

5HF-020H is part of the HOLLY FUSE 5HF range, specified at 2A, 500V AC. Confirmed approvals: cURus, TÜV, PSE.

Rated Current2A

Rated Voltage500V AC

Breaking Capacity1,000A at 500V AC

Package5.2×20mm

Tags

5.2×20mm 500V AC 5HF Ceramic Tube Fuse Quick-Acting

Designed for circuit protection, HOLLY FUSE 5HF-020H is specified at 2A, 500V AC within the 5HF series. Interrupting capacity: 1,000A at 500V AC. Confirmed approvals: cURus, TÜV, PSE. Standards: IEC 60127. Source: Hollyland Current Fuse catalogue p39.

Technical Specifications

Part Number: 5HF-020H
Manufacturer Part Number: 5HF-020H
Series: 5HF
Fuse Type: Ceramic Tube Fuse
Current Rating: 2A
Voltage Rating: 500V AC
AC / DC: AC
Breaking Capacity: 1,000A at 500V AC
I²t: 0.6986 A²s
Operating Temperature: -55°C to +125°C
Package / Dimensions: 5.2×20mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: IEC 60127
Terminal Type: Ferrule
Fuse Speed: Fast Acting
Approvals: cURus · PSE · TUV
Certifications: cURus · TÜV · PSE
Reference Lead Time: 2–4 weeks
Rated current: 2A
Rated voltage: 500V AC
Fuse characteristic: Quick-Acting
Fuse construction: Ceramic Tube Fuse
Interrupting capacity: 1,000A at 500V AC
Standards: IEC 60127
Confirmed approvals used in structured fields: cURus, TÜV, PSE
Manufacturer approval note: cURus, TÜV and PSE are shown in the manufacturer table; exact approvals depend on current rating.
Source: Hollyland Current Fuse catalogue, printed page 39
