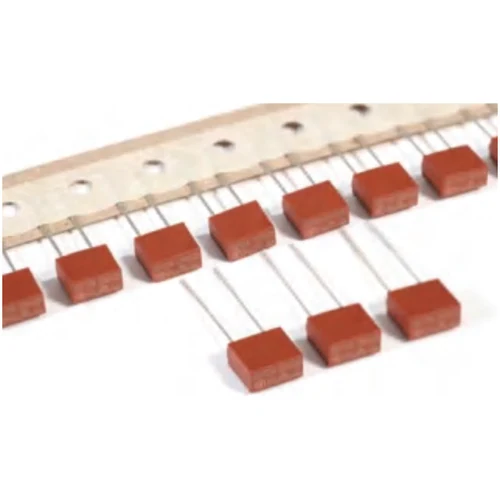

HOLLY FUSE 5ET-0250L 125V DC 250mA Radial Lead Microfuse

Name: HOLLY FUSE 5ET-0250L 125V DC 250mA Radial Lead Microfuse
Brand: Hollyland
SKU: 5ET-0250L

Part Number: 5ET-0250L

● Check availability

HOLLY FUSE 5ET-0250L is a Radial Lead Microfuse rated 250mA at 125V DC, with catalog-checked technical data.

Rated Current250mA

Rated Voltage125V DC

Breaking CapacityApproval-dependent; up to 200A at 250V AC

Package8×8.5×4mm

Tags

125V DC 5ET 8×8.5×4mm Radial Lead Microfuse Time-Lag

HOLLY FUSE 5ET-0250L belongs to the 5ET series and is specified as a radial lead microfuse rated 250mA at 125V DC. Interrupting capacity: Approval-dependent; up to 200A at 250V AC. Standards: IEC 60127, GB 9364. Source: Hollyland Current Fuse p19.

Technical Specifications

Part Number: 5ET-0250L
Manufacturer Part Number: 5ET-0250L
Series: 5ET
Fuse Type: Radial Lead Microfuse
Current Rating: 250mA
Voltage Rating: 125V DC
AC / DC: DC
Breaking Capacity: Approval-dependent; up to 200A at 250V AC
I²t: 0.3206 A²s
Pre-arcing I²t: 0.3206
Total I²t: 0.3206
Operating Temperature: -55°C to +125°C
Package / Dimensions: 8×8.5×4mm
Mounting: PCB Through-Hole
Application: Electronic Circuit Protection
Standard: GB 9364 · IEC 60127
Terminal Type: Radial Lead
Fuse Speed: Time Delay
Rated current: 250mA
Rated voltage: 125V DC
Fuse characteristic: Time-Lag
Standards: IEC 60127, GB 9364
Interrupting capacity: Approval-dependent; up to 200A at 250V AC
Manufacturer-listed approval authorities: CCC, SEMKO, VDE, cURus, BSI, PSE, KC, TÜV. Availability varies by rating/voltage; verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p19
