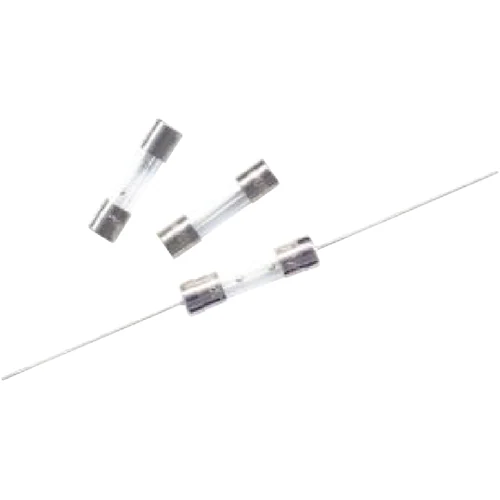

HOLLY FUSE 52S-016L 125V AC 1.6A Slow-Blow Glass Fuse
● Check availabilityHOLLY FUSE 52S-016L combines its rated protection value with 125V AC operation in the 51S product family.
Rated Current1.6A
Rated Voltage125V AC
Breaking Capacity10,000A at 125V AC
Package5.2×20mm
QUICK RFQ
Request a quote for 52S-016L
Submit directly from this product page. We will reply with availability, lead time and pricing.
Part Number52S-016LBrandHollylandRequested Qty100
Part 52S-016L is a HOLLY FUSE 51S-series slow-blow glass fuse with specifications of 1.6A, 125V AC. Interrupting capacity: 10,000A at 125V AC. Standards: UL 248-1, UL 248-14. Technical data checked against catalogue p34.
Technical Specifications
- Part Number
- 52S-016L
- Manufacturer Part Number
- 52S-016L
- Series
- 51S
- Fuse Type
- Glass Tube Fuse
- Current Rating
- 1.6A
- Voltage Rating
- 125V AC
- AC / DC
- AC
- Breaking Capacity
- 10,000A at 125V AC
- I²t
- 9.8 A²s
- Operating Temperature
- -55°C to +125°C
- Package / Dimensions
- 5.2×20mm
- Mounting
- Cartridge / Clip
- Application
- Electronic Circuit Protection
- Standard
- UL 248-1 · UL 248-14
- Terminal Type
- Ferrule
- Fuse Speed
- Time Delay
- Reference Lead Time
- 2–4 weeks
- Rated current
- 1.6A
- Rated voltage
- 125V AC
- Fuse characteristic
- Slow-Blow
- Fuse construction
- Glass Tube Fuse
- Interrupting capacity
- 10,000A at 125V AC
- Standards
- UL 248-1, UL 248-14
- Manufacturer approval note
- UL/cUL, UR, CSA, PSE and KC are listed; exact approvals vary by current rating and H/L voltage option.
- Source
- Hollyland Current Fuse catalogue, printed page 34
