Hollyland

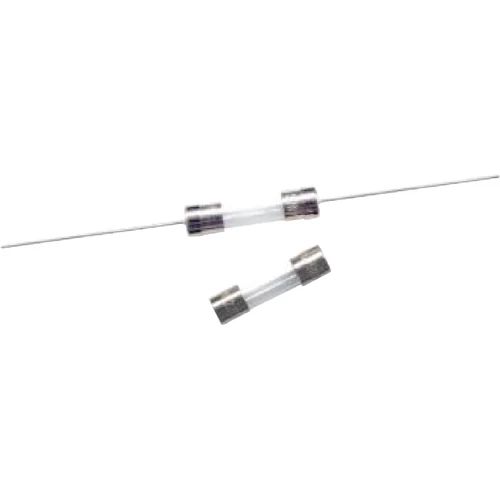

HOLLY FUSE 52NM-150L 125V AC 15A Fast-Blow Glass Fuse

Name: HOLLY FUSE 52NM-150L 125V AC 15A Fast-Blow Glass Fuse
Brand: Hollyland
SKU: 52NM-150L

Part Number: 52NM-150L

● Check availability

52NM-150L from HOLLY FUSE provides 15A, 125V AC circuit protection in the 51NM series. Confirmed common approvals: UL, cUL.

Rated Current15A

Rated Voltage125V AC

Package5.2×20mm

Tags

125V AC 5×20mm Cartridge / Clip fast acting (f)Glass Tube Fuses

For applications requiring 15A, 125V AC, HOLLY FUSE 52NM-150L provides the manufacturer-specified characteristics of the 51NM family. Standards: UL 248-1, UL 248-14. Confirmed common approvals: UL, cUL. Verified against catalogue p32.

Technical Specifications

Part Number: 52NM-150L
Manufacturer Part Number: 52NM-150L
Series: 51NM
Fuse Type: Glass Tube Fuse
Current Rating: 15A
Voltage Rating: 125V AC
AC / DC: AC
Operating Temperature: -55°C to +125°C
Package / Dimensions: 5.2×20mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Ferrule
Fuse Speed: Fast Acting
Approvals: cULus · UL
Certifications: UL · cUL
Reference Lead Time: 2–4 weeks
Rated current: 15A
Rated voltage: 125V AC
Fuse characteristic: Fast-Blow
Fuse construction: Glass Tube Fuse
Standards: UL 248-1, UL 248-14
Interrupting capacity: no single general value stated for this exact rating/voltage in the catalogue; consult the detailed approval/rating table.
Manufacturer-listed approval authorities: UL/cUL, UR, CSA, PSE and KC are listed by the manufacturer; exact approvals vary by rating/voltage.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse catalogue, printed page 32
