What are the current and voltage ratings of 52NM-0300L?

52NM-0300L is rated 300mA at 125V AC.

What is the breaking capacity of 52NM-0300L?

52NM-0300L has a breaking capacity of 10,000A at 125V AC. Confirm this covers the available fault current at the installation point.

What package size does 52NM-0300L use?

52NM-0300L uses 5.2×20mm package size.

Which standards and approvals apply to 52NM-0300L?

52NM-0300L is listed under UL 248-1, UL 248-14 / UL · cUL.

What is 52NM-0300L used for?

52NM-0300L is listed for Electronic Circuit Protection applications. Verify suitability for your circuit before ordering.

What are the ordering terms for 52NM-0300L?

52NM-0300L: typical lead time 2–4 weeks. Submit a quote request for a firm quotation.

Hollyland

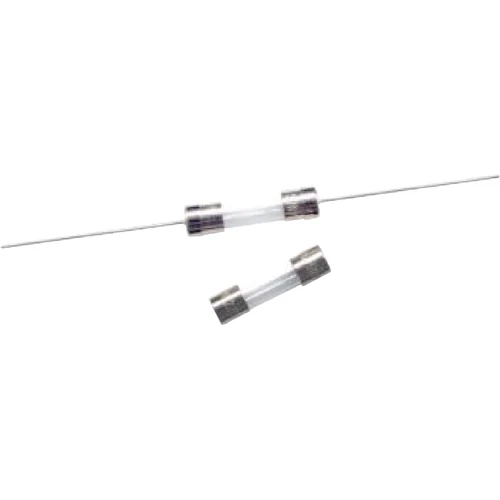

HOLLY FUSE 52NM-0300L 125V AC 300mA Fast-Blow Glass Fuse

Name: HOLLY FUSE 52NM-0300L 125V AC 300mA Fast-Blow Glass Fuse
Brand: Hollyland
SKU: 52NM-0300L

Part Number: 52NM-0300L

● Check availability

Manufacturer-checked specifications for HOLLY FUSE 52NM-0300L: 300mA, 125V AC. Interrupting capacity: 10,000A at 125V AC. Confirmed common approvals: UL, cUL.

Rated Current300mA

Rated Voltage125V AC

Breaking Capacity10,000A at 125V AC

Package5.2×20mm

Tags

125V AC 5×20mm Cartridge / Clip fast acting (f)Glass Tube Fuses

HOLLY FUSE 52NM-0300L: fast-blow glass fuse, 300mA, 125V AC. Interrupting capacity: 10,000A at 125V AC. Confirmed common approvals: UL, cUL. Applicable standards: UL 248-1, UL 248-14. Source: Current Fuse catalogue p32.

Technical Specifications

Part Number: 52NM-0300L
Manufacturer Part Number: 52NM-0300L
Series: 51NM
Fuse Type: Glass Tube Fuse
Current Rating: 300mA
Voltage Rating: 125V AC
AC / DC: AC
Breaking Capacity: 10,000A at 125V AC
Operating Temperature: -55°C to +125°C
Package / Dimensions: 5.2×20mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Ferrule
Fuse Speed: Fast Acting
Approvals: cULus · UL
Certifications: UL · cUL
Reference Lead Time: 2–4 weeks
Rated current: 300mA
Rated voltage: 125V AC
Fuse characteristic: Fast-Blow
Fuse construction: Glass Tube Fuse
Standards: UL 248-1, UL 248-14
Interrupting capacity: 10,000A at 125V AC
Manufacturer-listed approval authorities: UL/cUL, UR, CSA, PSE and KC are listed by the manufacturer; exact approvals vary by rating/voltage.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse catalogue, printed page 32
